Brake Lights (X Series_X3-E83 With ( As of 09/04 Up to 09/06 ))

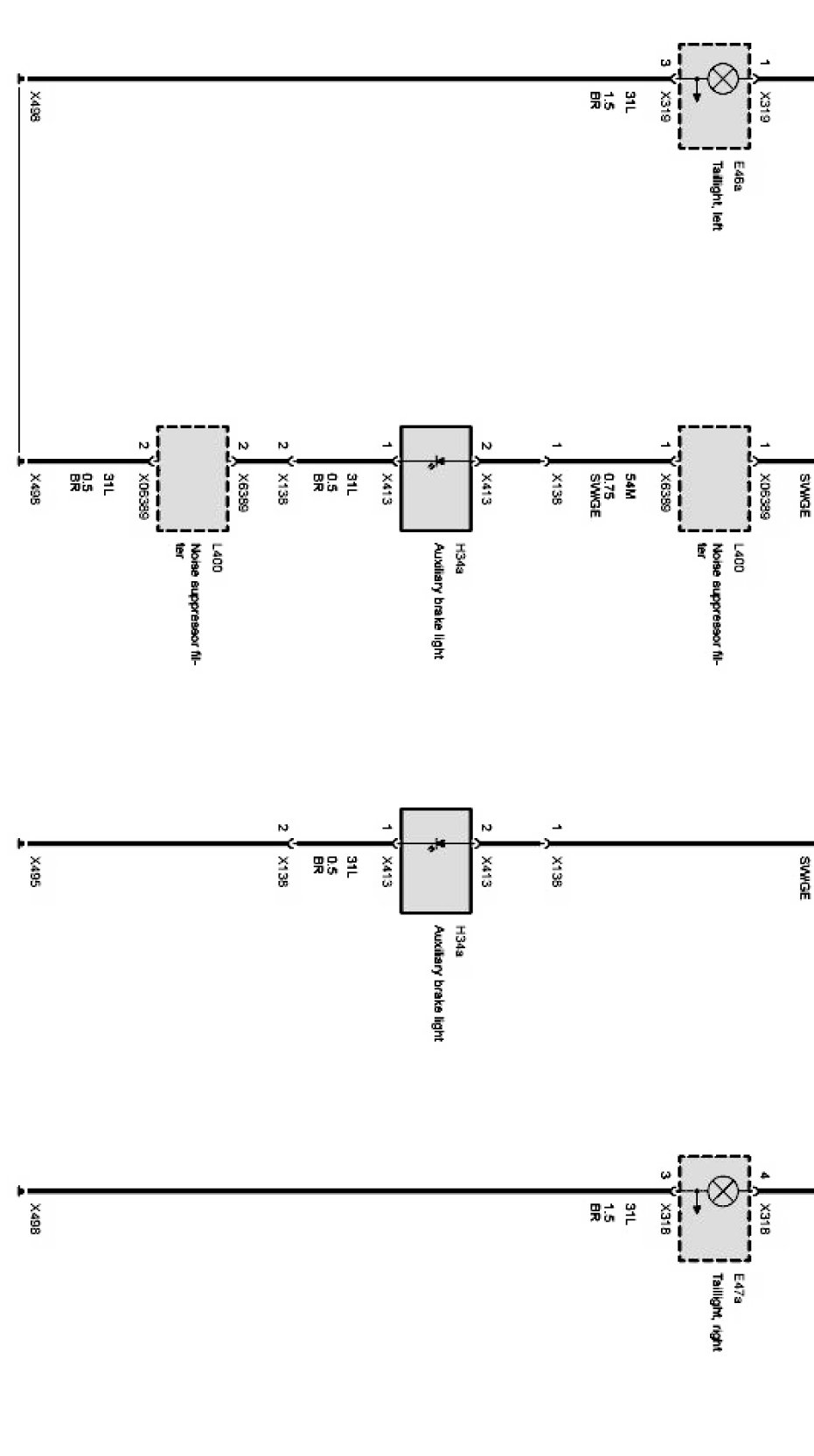

Brake lights Part 1:



Brake lights Part 2:
