51 12 828 - Removing and installing/replacing left or right guide for rear bumper




51 12 828 - Removing and installing/replacing left or right guide for rear bumper





Necessary preliminary tasks:
- Remove rear bumper trim

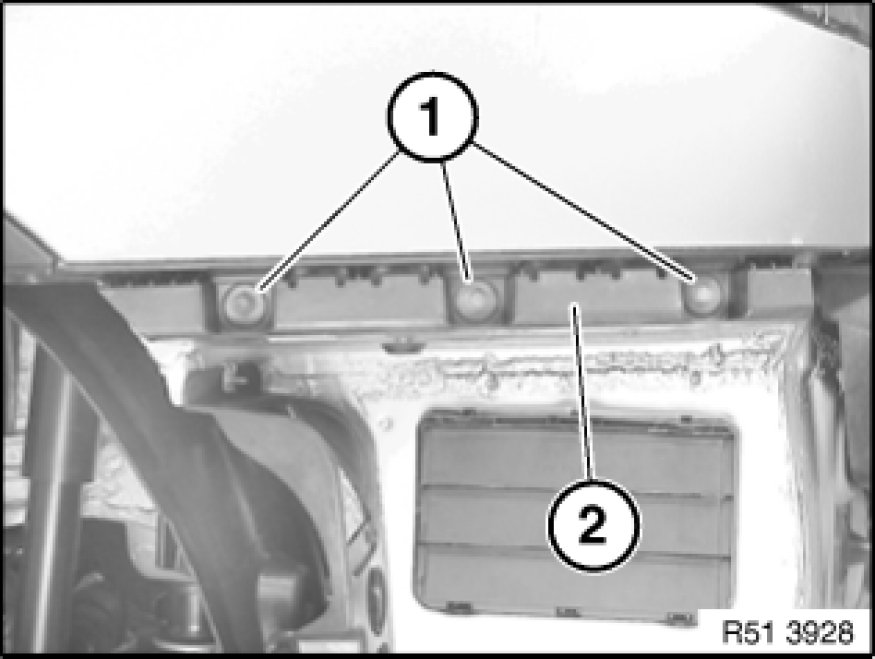

Release screws (1).
Remove guide (2).
Tightening torque 51 12 9AZ [1][2]Rear Bumper.
