51 12 825 - Removing and installing/replacing guide for rear center bumper

51 12 825 - Removing and installing/replacing guide for rear center bumper





Necessary preliminary tasks:
- Remove rear bumper trim





Version with Park Distance Control:

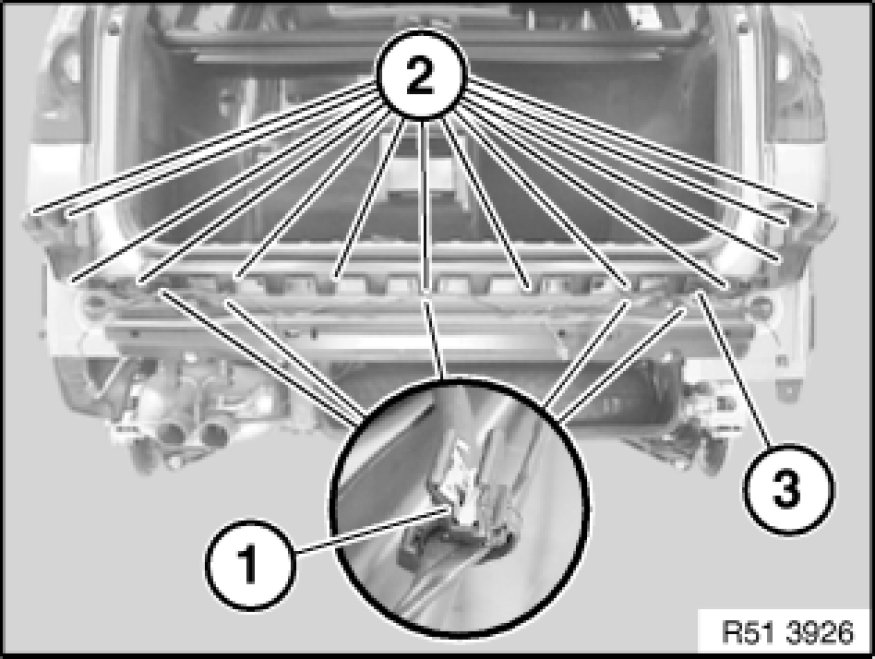

If necessary, release cable holders (1) and lay cable to one side.
Unfasten screws (2).
Remove guide (3).

Installation:
If necessary, replace damaged cable straps (1).
Tightening torque 51 12 10AZ [1][2]Rear Bumper.
