Voice Activation Microphone: Service and Repair

84 11 550 - Removing and installing/replacing hands-free microphone





Necessary preliminary tasks:
- Remove front roofliner trim 51 44 ... - Removing and installing front roofliner trim

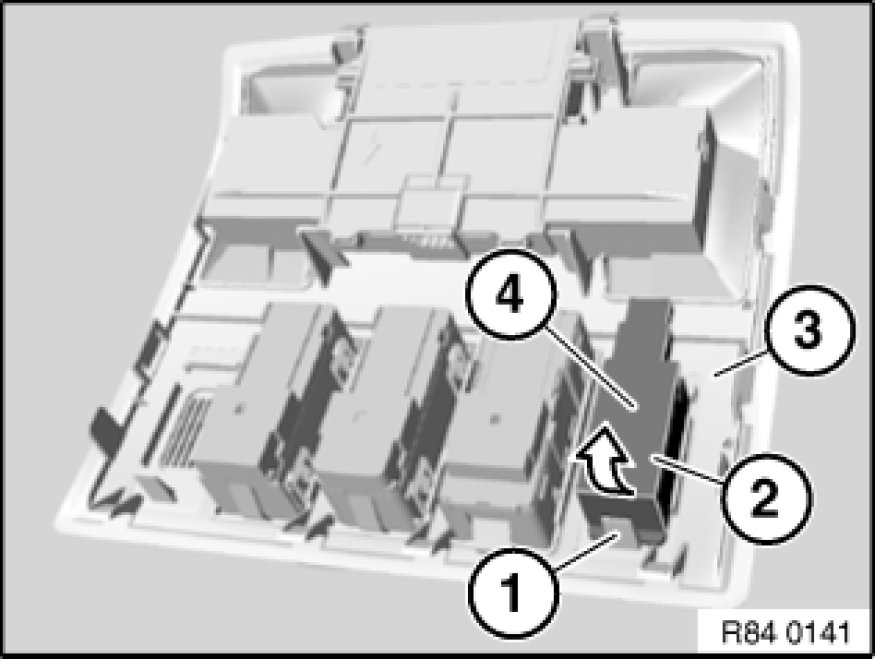

Expand catch (1) and feed hands-free microphone (2) in direction of arrow out of front roofliner trim (3).

Installation:
Arrow (4) on hands-free microphone (2) points in direction of travel.
