51 37 003 Replacing Rear Left or Right Power Window Unit

51 37 003 - Replacing rear left or right power window unit





Necessary preliminary tasks:
- Remove rear power window unit completely 51 37 000 Removing and Installing Complete Rear Left or Right Power Window Unit
- Remove flat motor for rear power window unit Service and Repair

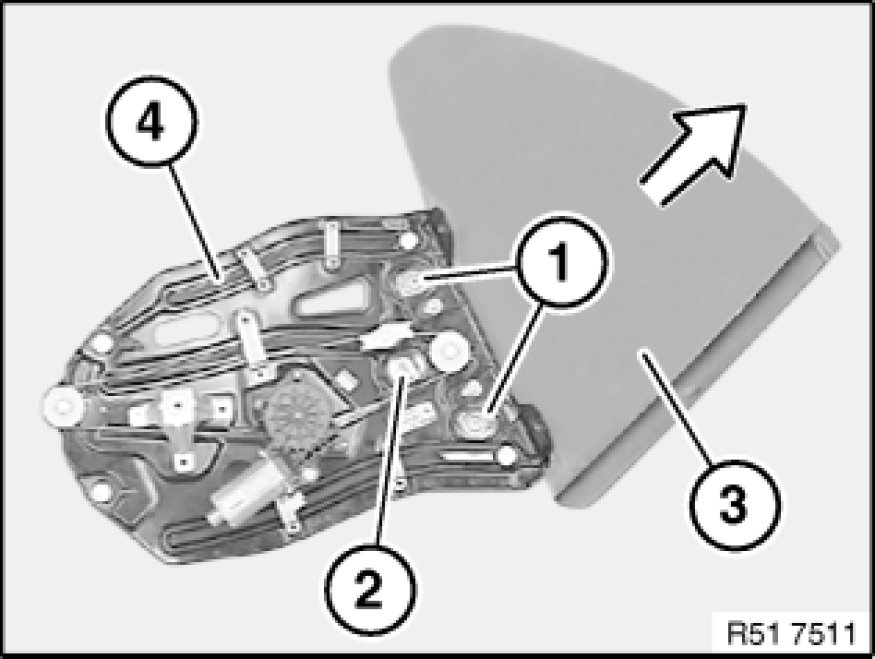

Release screws (1) and nut (2) and remove door window (3) from power window unit (4).





Installation:
Initial adjustment of pretension:
Attach adjusting screw (1) until flush on outside.
Check function.
Adjust rear door window Adjustments.
