51 37 000 Removing and Installing Complete Rear Left or Right Power Window Unit

51 37 000 - Removing and installing complete rear left or right power window unit





Warning!
Power window unit has no anti-trapping mechanism.





Necessary preliminary tasks:
- Remove rear side trim panel Removing and Installing Rear Left or Right Side Trim Panel
- Remove inner window cavity cover strip 51 37 242 Replacing Outer Window Cavity Cover Strip For Rear Left or Right Side Window
- Remove outer window cavity cover strip 51 37 240 Removing and installing/replacing outer window cavity cover strip for door window, rear left or right
- Remove central bass speaker Removing and Installing/Replacing Left or Right Central Bass Speaker





Release screws (1) and remove window cavity cover (2).
Move door window into uppermost end position.





Release screws (1 and 2).
Tightening torques:
1 - 51 37 5AZ [1][2]Quarter Window Motor
2 - 51 37 6AZ [1][2]Quarter Window Motor

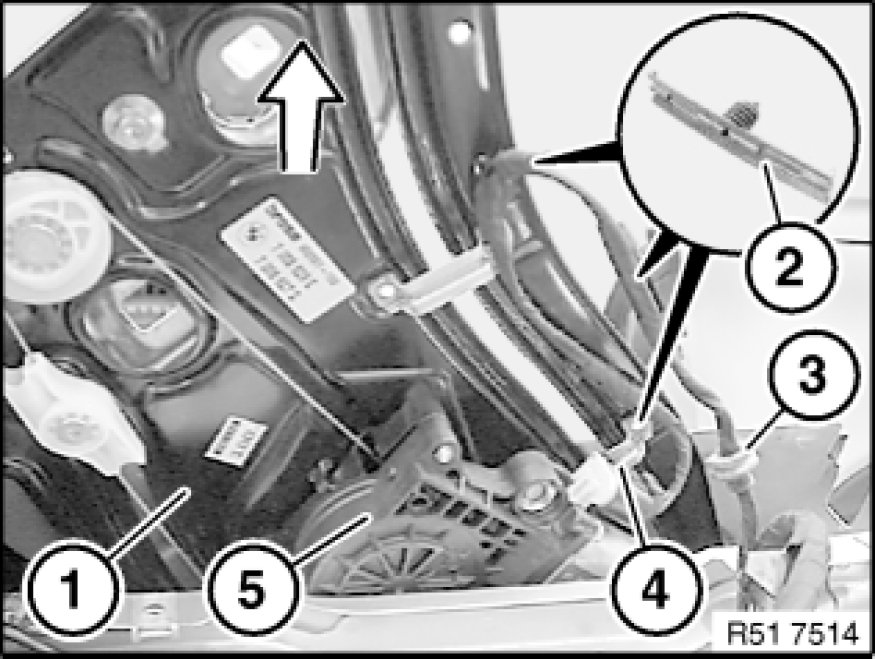

Pull out power window unit (1) towards top slightly.
Lift out cable holder (2) from power window unit (1).
Lever out grommet (3) from side panel.
Disconnect plug connection (4) on flat motor (5).
Remove power window unit (1).





Presettings after fitting power window unit:

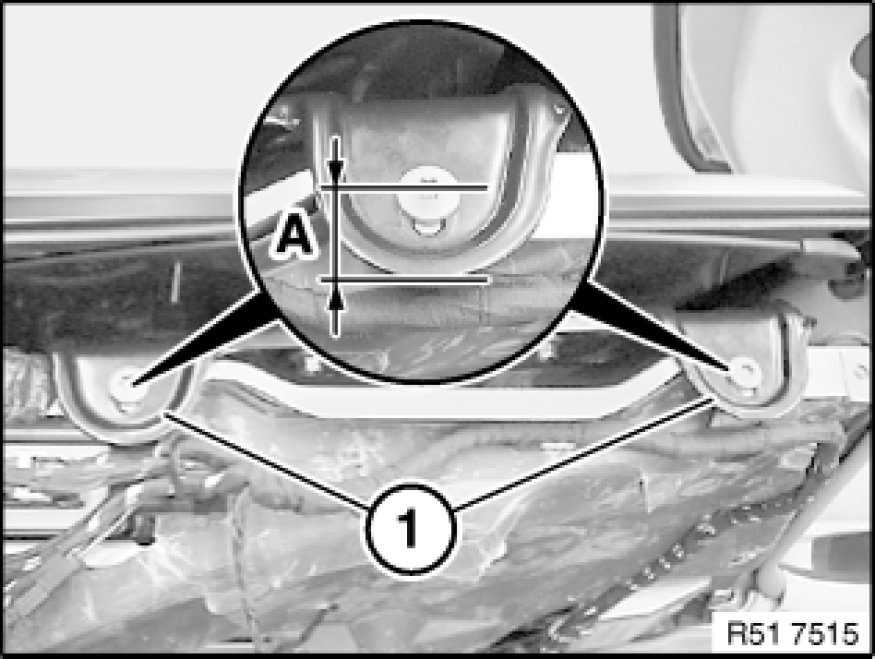

Preset dimension (A) at power window unit (1) (window glass breakage); only then may the power window unit (1) be actuated.
Dimension (A) = 18.5 mm





Close window completely.

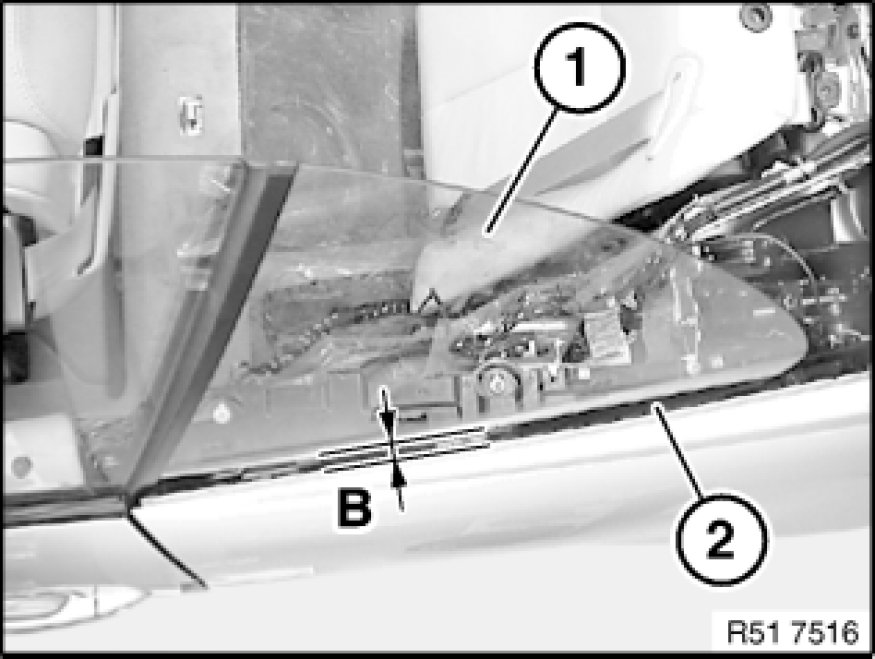

Check gap dimension (B) between door window (1) and flange on side panel (2).
Dimension (B) = 7.7 mm





Open convertible top and convertible top compartment lid.
Fit window cavity cover (1).

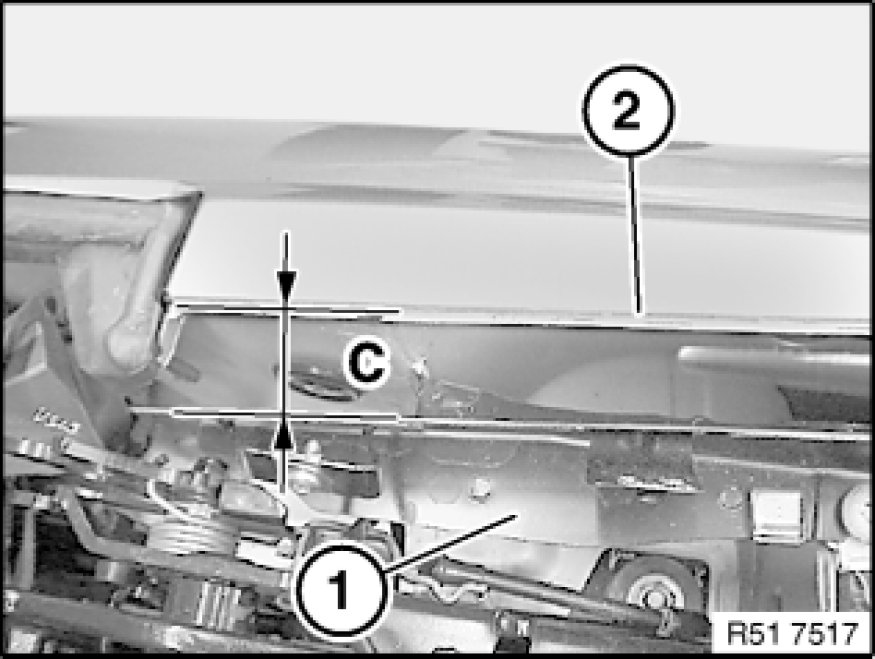

Preset dimension (C) between window cavity cover (1) and flange on side panel (2).
Dimension (C) = 24 mm

Installation Note:
Check function.
Adjust rear side window Adjustments.
