51 37 240 Removing and installing/replacing outer window cavity cover strip for door window, rear left or right

51 37 240 - Removing and installing/replacing outer window cavity cover strip for door window, rear left or right





Special tools required:
- 00 9 311 00 9 310 Assembly Wedges (Set in Plastic Case)





Open door window.

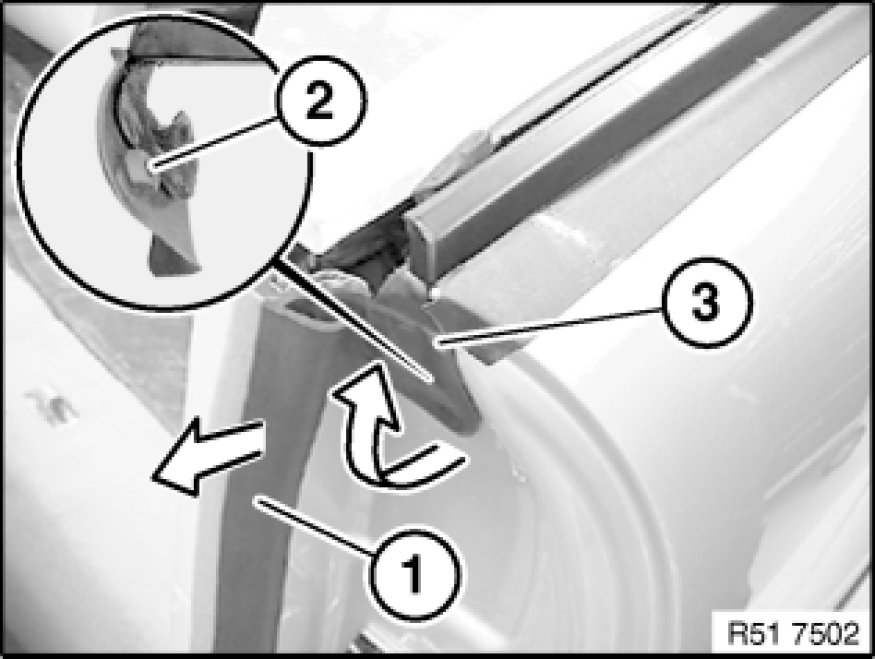

Detach mucket (1).

Lever out catch (2) at corner of window cavity cover strip in direction of arrow.





Attach adhesive tape (1) under window cavity cover strip (2) (damage to paintwork).

Using special tool 00 9 311 00 9 310 Assembly Wedges (Set in Plastic Case) beginning at front proceeding to rear, lever out window cavity cover strip (2).





Installation:

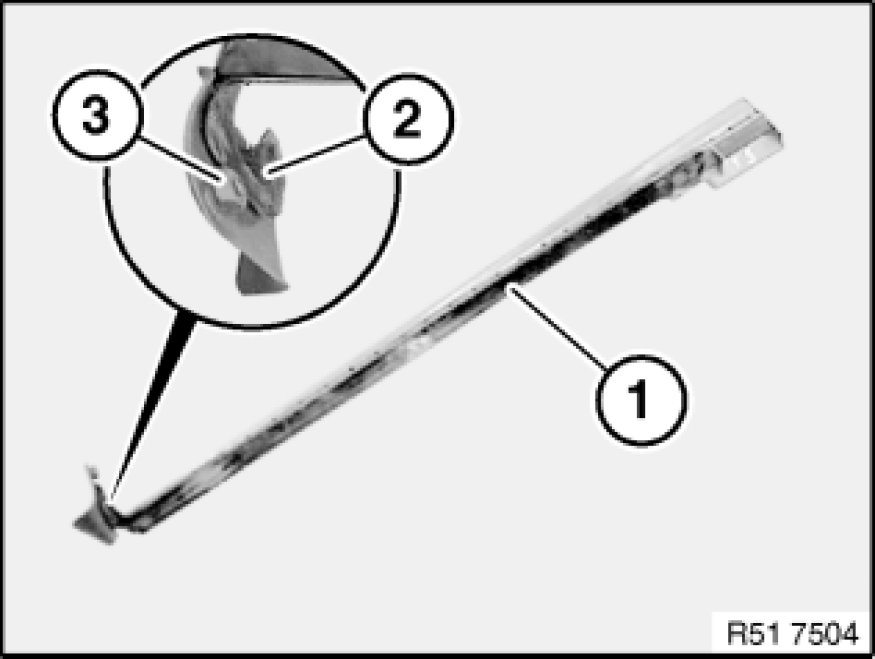

Following parts of window cavity cover strip must not be damaged:

2 - Guide
3 - Catch
