Removing and Installing/Replacing Left or Right Window Guide For Rear Window




54 34 305 - Removing and installing/replacing left or right window guide for rear window

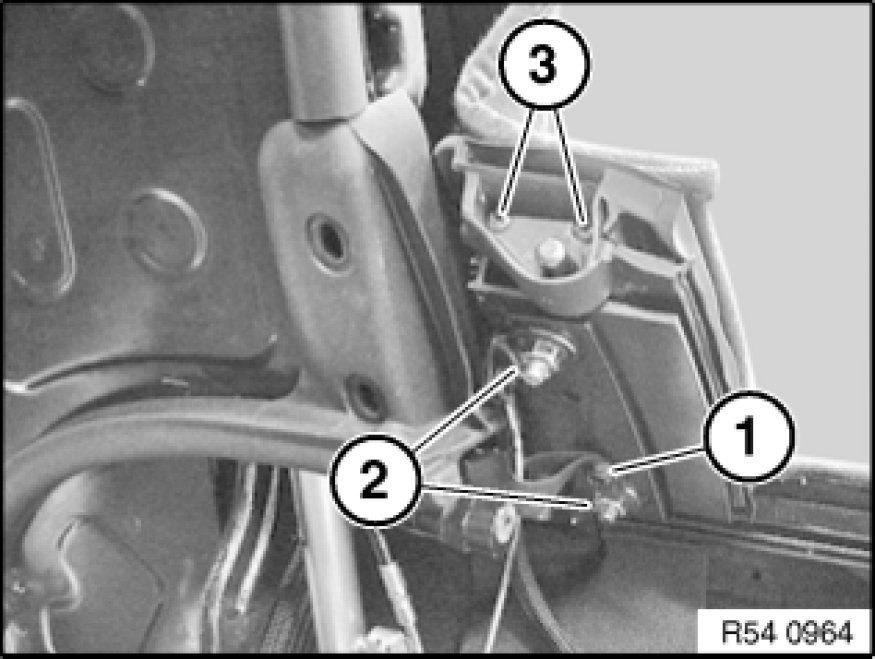

Seal (window guide) on convertible top fins:
Release screw (1).
Unscrew nuts (2).
Feed out convertible top fabric with threaded pins.
Replacement only:
Release screws (3).
Feed seal out of rail.
