Front Door Window Motor: Service and Repair

67 62 000 - Removing and installing/replacing flat motor for front left or right power window unit





Necessary preliminary tasks:
- Release sound insulation on front door Removing and Installing/Replacing Sound Insulation in Left or Right Front Door

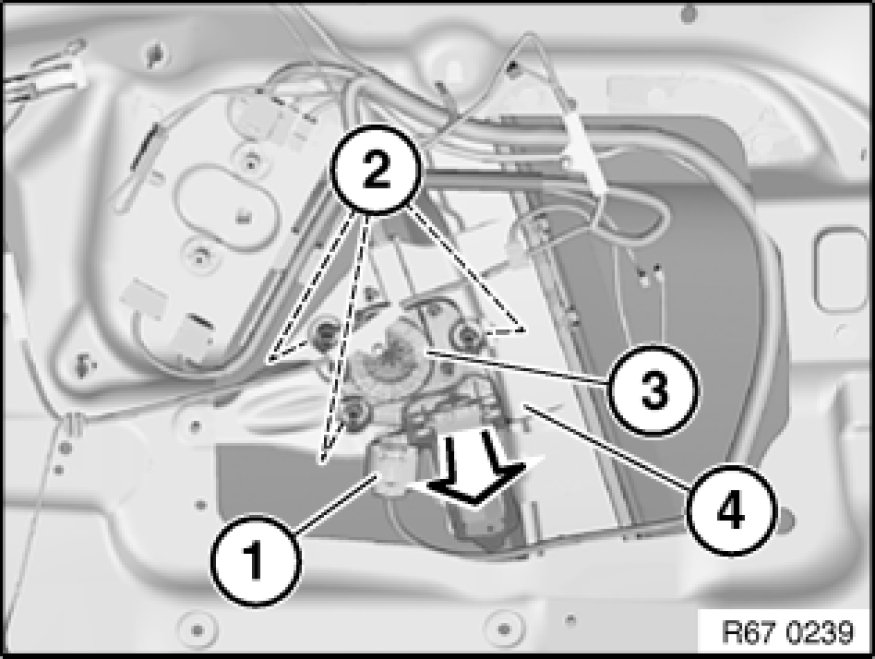

Unfasten plug connection (1) and disconnect.
Release screws (2).
Detach flat motor for power window unit (3) in direction of arrow from power window unit (4) and remove.





Replacement:
A normalization must be carried out in order to activate anti-trapping protection.
Operating sequence for normalization:
- Open corresponding window completely.
- Operate corresponding power window switch in "Close" position (second switch stage).
- Once the upper end position has been reached, hold power window switch down for approx. 1 second more.
Normalization is thus completed.





Note:
Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
