Replacing Rubber Mount for Transmission Mounting

22 31 001 - Replacing rubber mount for transmission mounting (S85)





Necessary preliminary tasks:
- Remove underbody protection
- Remove complete exhaust system Service and Repair
- Remove heat shields
- Support transmission with hydraulic lifter.

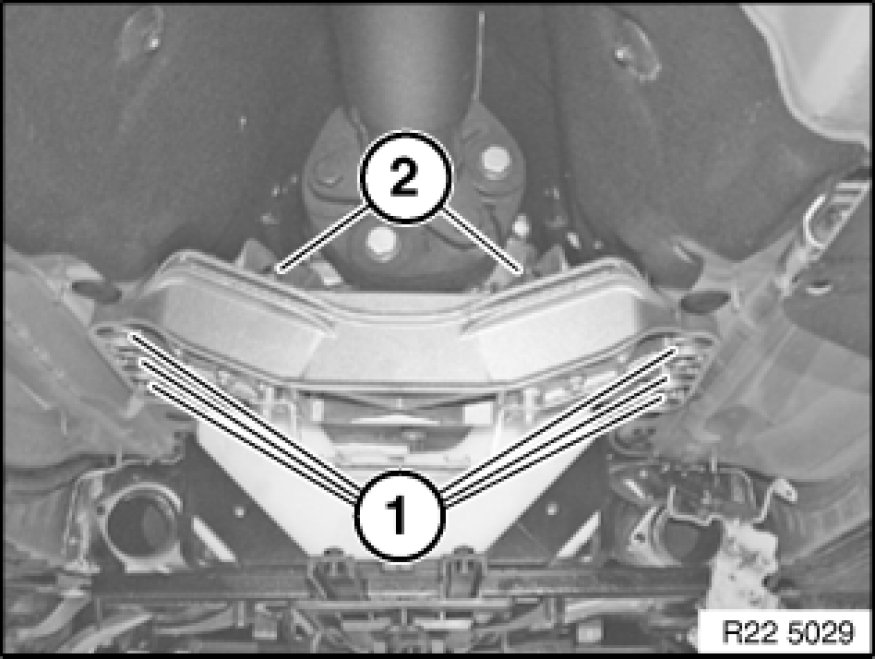

Release screws (1) and nuts (2) and remove transmission cross-member.
Remove rubber mount from transmission cross-member.
Tightening torque 23 71 2AZ/5AZ 23 71 Transmission Mounts.
