Removing and Installing/Replacing Vibration Damper




25 11 250 - Removing and installing/replacing vibration damper





Necessary preliminary tasks:
- Remove shift lever cover.
- Remove shift lever knob.

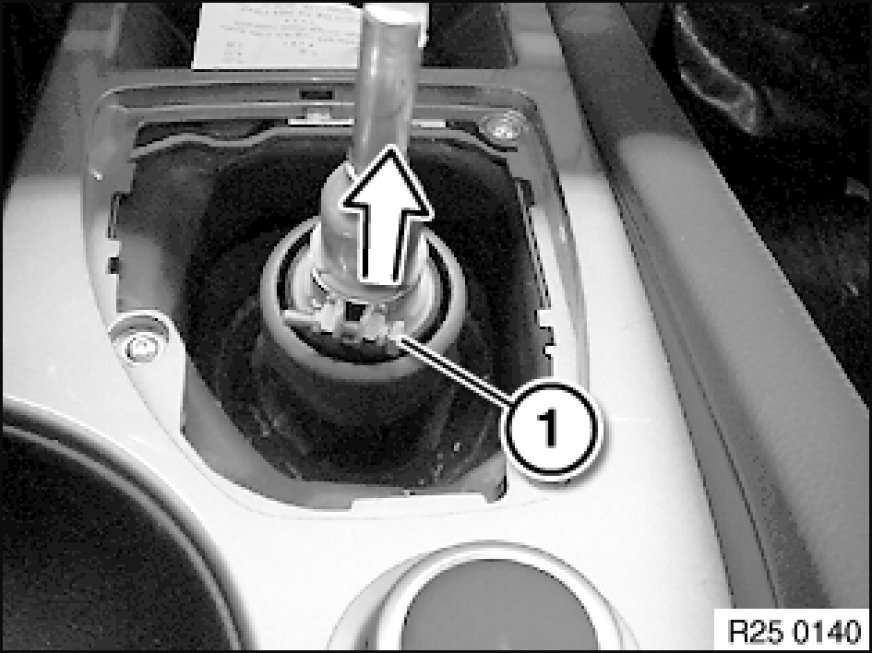

Release screw (1).
Tightening torque 25 11 10AZ Shift Console - Manual Transmission.
Remove vibration damper in direction of arrow.
