Wiring Harness: Service and Repair

23 14 504 - Replacing wiring harness (GS7S47BG SMG)

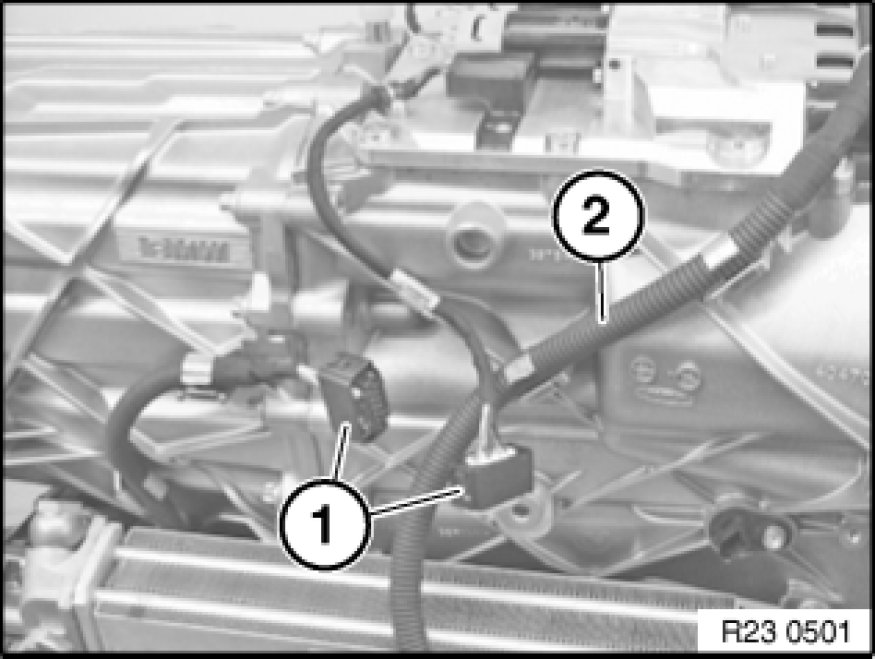

Disconnect connector (1).
Detach cable (2) from bracket.

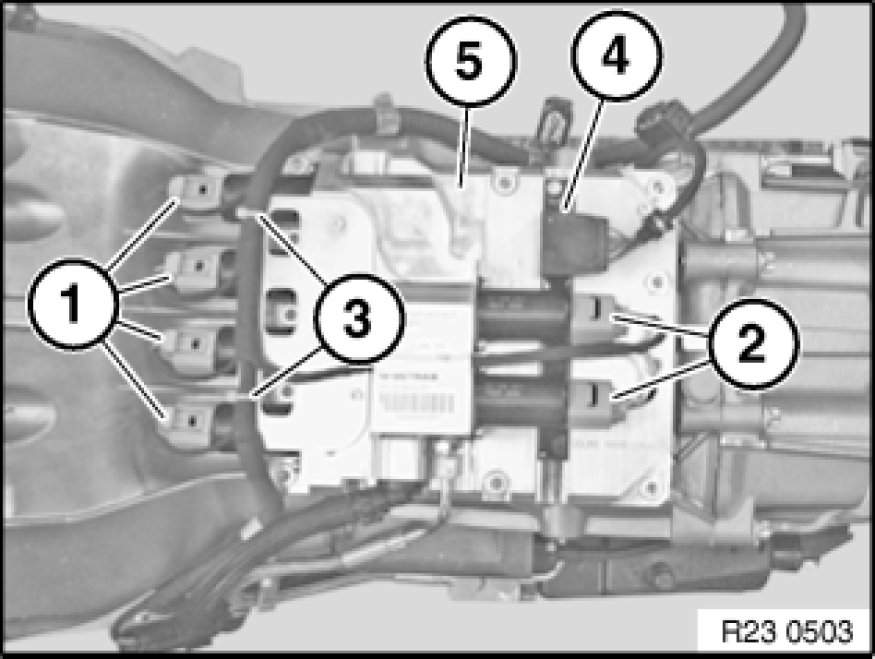

Disconnect plugs (1) and (2) from valve block.
Release cable tie (3).

Installation:
Use maximum-temperature-resistant cable ties (approx. 140°).

Important!
Sensor strip (4) must not be separated from actuator block (5).
Sensor strip and actuator block may only be replaced as a single unit.





Important!

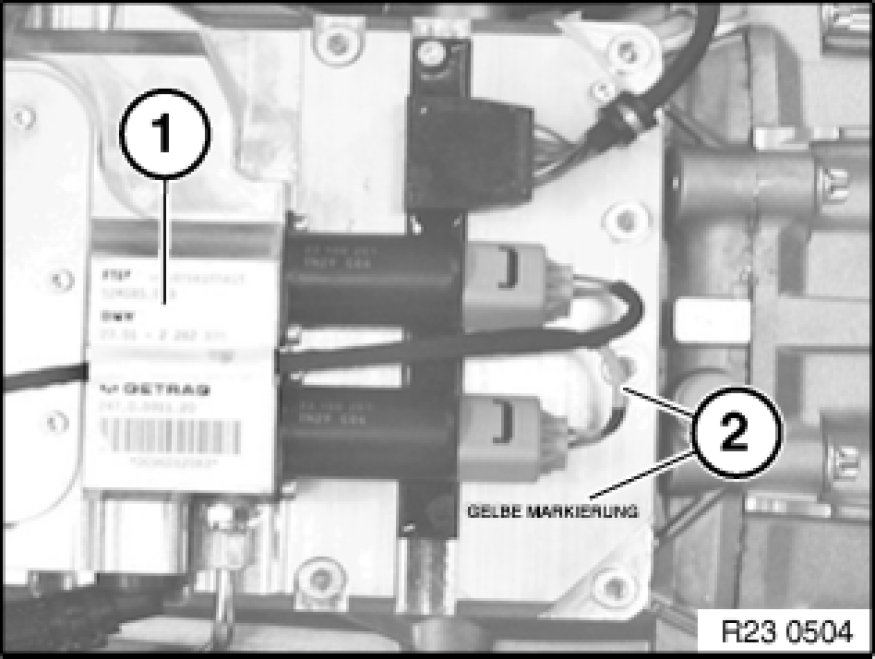

When installing, pay attention without fail to yellow markings (2).

Installation:
Cut open sticker (1) over course of cable.
Tape over again with transparent adhesive tape.

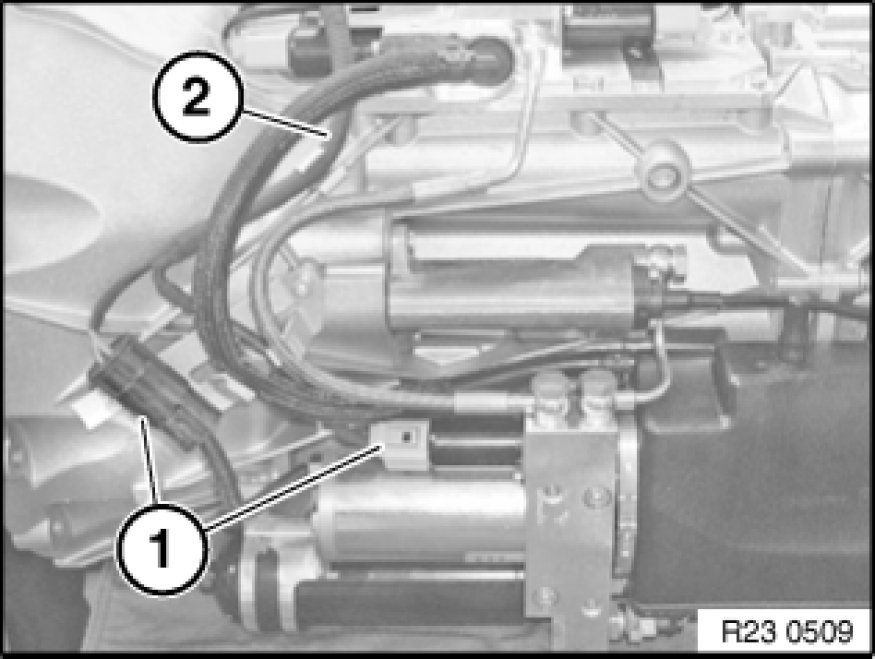

Disconnect connector (1).
Release wiring harness (2) from holders.
