Removing and Installing/Replacing Left or Right Shift Paddle For SMG Transmission

61 31 103 - Removing and installing/replacing left or right shift paddle for SMG transmission





Necessary preliminary tasks:
- Remove decorative trim for multifunction steering wheel switch

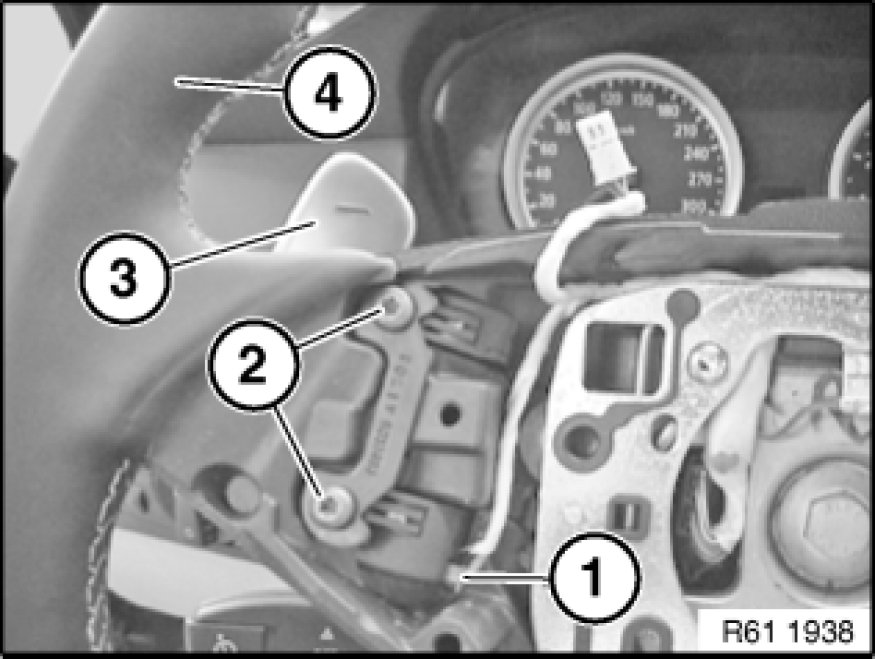

Disconnect plug connection (1).
Release screws (2).
Remove shift paddle for SMG transmission (3) from steering wheel (4).

Installation:
- Make sure wiring harness is routed exactly
- Make sure shift paddle for SMG transmission (3) is correctly seated on steering wheel (4)
