Replacing guide tube for clutch release unit (GS7S47BG SMG)

23 11 607 - Replacing guide tube for clutch release unit (GS7S47BG SMG)





Necessary preliminary tasks:
- Remove transmission Removing and Installing Transmission (GS7S47BG SMG)
- Remove clutch release unit 7 Speed and release lever from guide sleeve

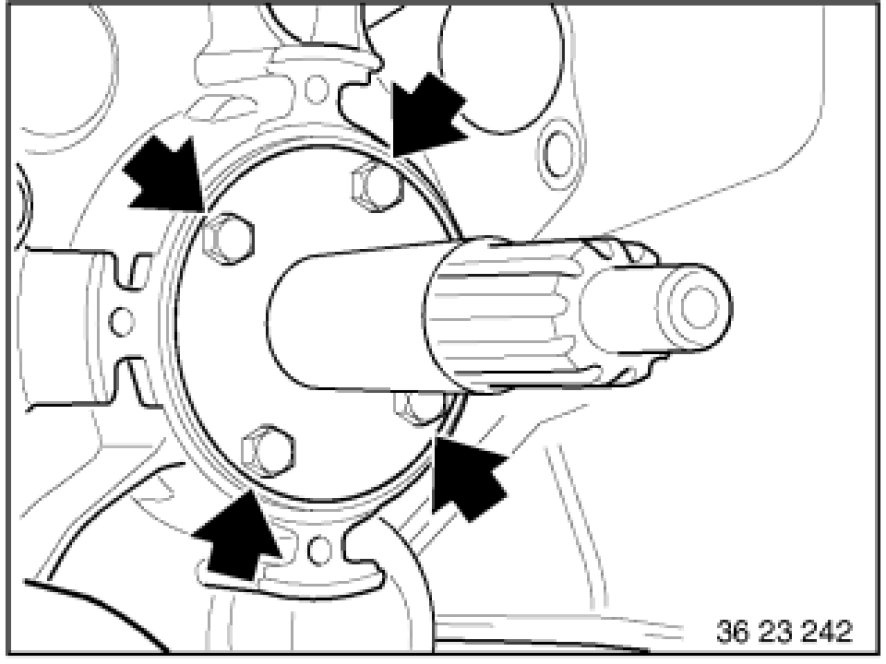

Release screws.
Remove guide sleeve.
Tightening torque 23 11 2AZ [1][2]Case, M/T.

Installation Note:
Replace bolts.
Clean new guide sleeve.
Guide surface must be clean (no labels/stickers or residual adhesive, etc.).

Important!
Apply a thin film of Esso(R) Unirex S2 grease to guide tube.

Grease, refer to BMW Service Operating Fluids.
