Audio System - Radio Turns OFF/Date Display Cleared

SI B 65 36 07
Audio, Navigation, Monitors, Alarms, SRS

January 2008
Technical Service

This Service Information bulletin supersedes SI 65 36 07 dated December 2007.

[NEW] designates changes to this revision.

SUBJECT:
Radio Turns Off After 8 Minutes and Time and Date Display is Cleared

MODEL:
E60, E61 (5 Series) with option 606 (MASK2)
E63, E64 (6 Series) with option 606 (MASK2)

Produced from May 31, 2007 to June 25, 2007

SITUATION

The radio turns off after 8 minutes instead of 25 minutes in KL-30 mode (radio turned on via the rotary knob with the ignition off).

The time and date display is cleared.

After switching the ignition on, the radio turns back on and the time and date must be reset.

CAUSE

Incorrect coding data in the Body Gateway Module (KGM).

Fault Code "A559 - Terminal 30g_f_shutdown" is stored in the Instrument Cluster.

[NEW] CORRECTION

Do not replace parts.

The problem has been integrated into DIS diagnostics. Follow diagnostics using the latest DIS version.

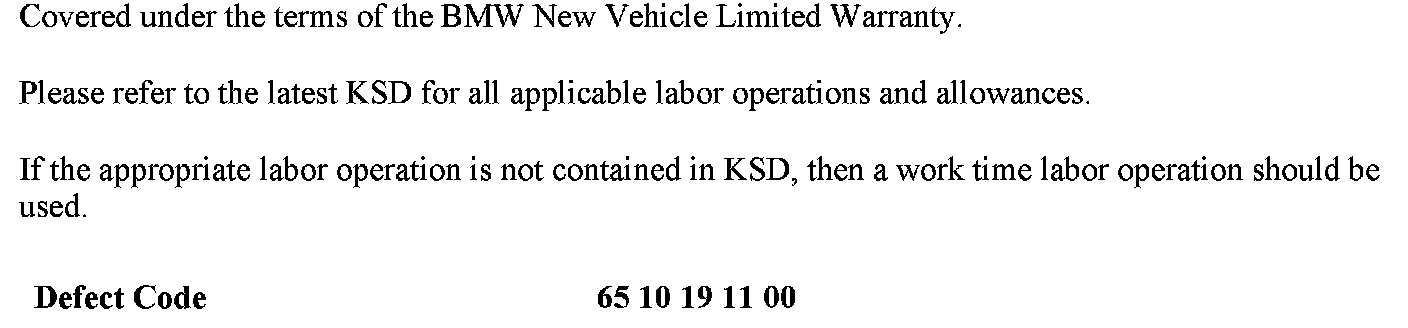

WARRANTY INFORMATION





Disclaimer
