Checking Front and Rear Wheel for Face and Radial Runout

36 10 209 - Checking front and rear wheel for face and radial runout





Special tools required:
- 36 1 030 36 1 030 Tester





Necessary preliminary tasks:
- Check wheel bearings





Lift vehicle.

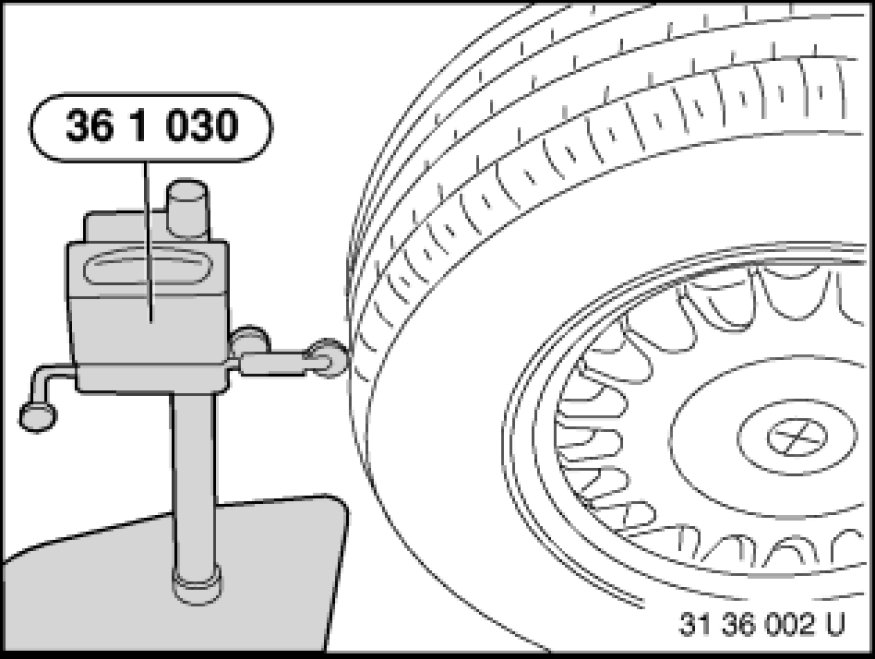

Check wheel with special tool 36 1 030 36 1 030 Tester (measuring fixture) for lateral runout.

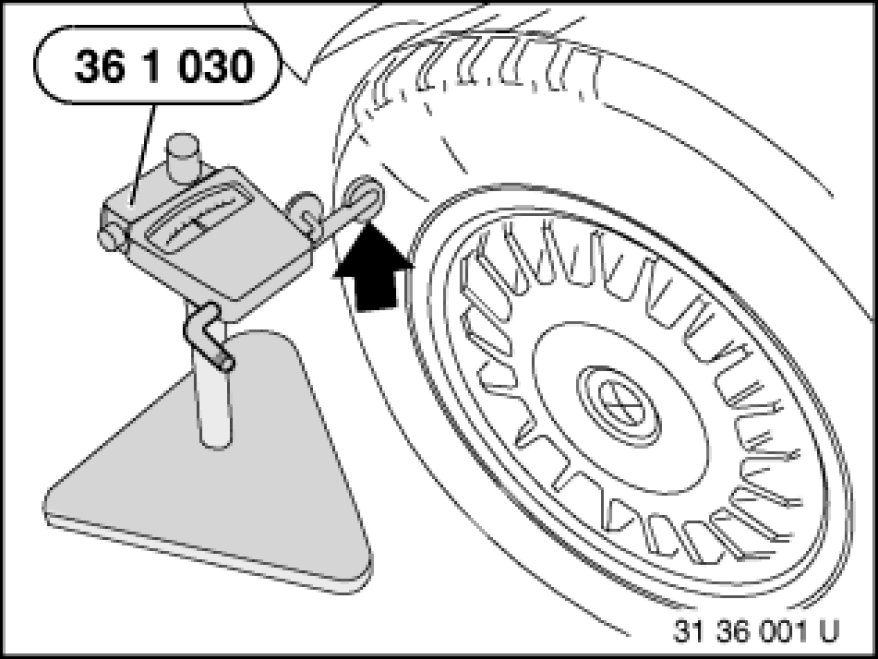

Check wheel with special tool 36 1 030 36 1 030 Tester (measuring fixture) for radial runout.





If applicable, remove balance weights.

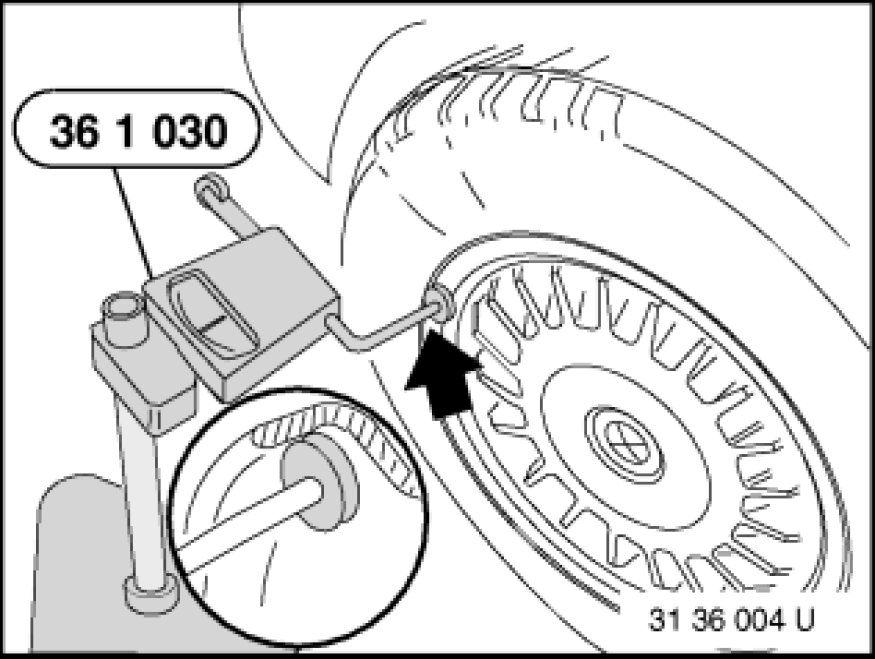

Check lateral runout of rim with special tool 36 1 030 36 1 030 Tester (measuring fixture).

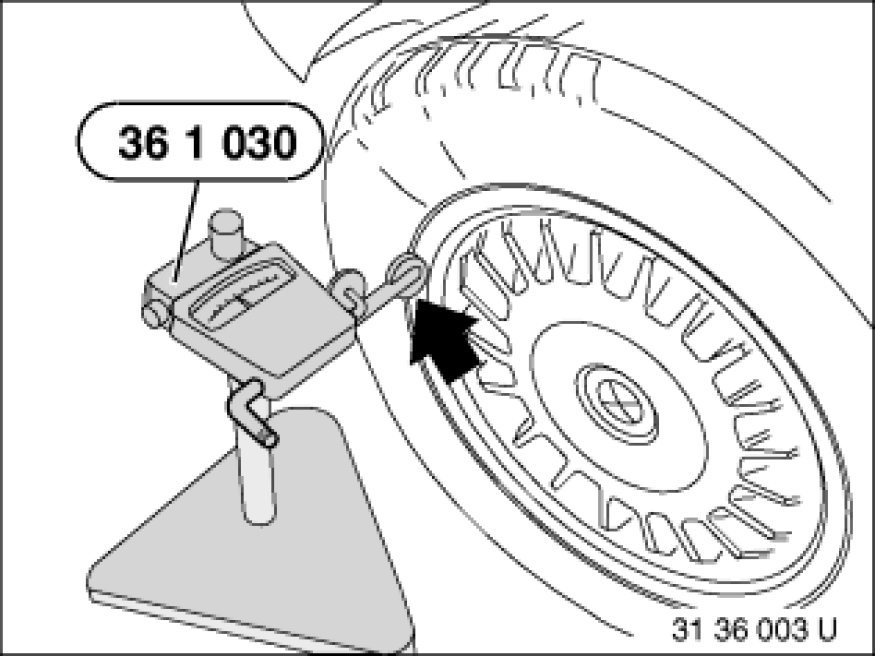

Check radial runout of rim with special tool 36 1 030 36 1 030 Tester (measuring fixture).
