Removing and Installing/Replacing Both Tension Struts

31 12 080 - Removing and installing/replacing both tension struts





Necessary preliminary tasks:
- Remove front wheel Removing or Installing Front or Rear Wheel
- Remove front assembly underside protection Removing and Installing/Replacing Front Underbody Protection
- Remove steering gear cover at side
- If necessary, remove wheel suspension cover

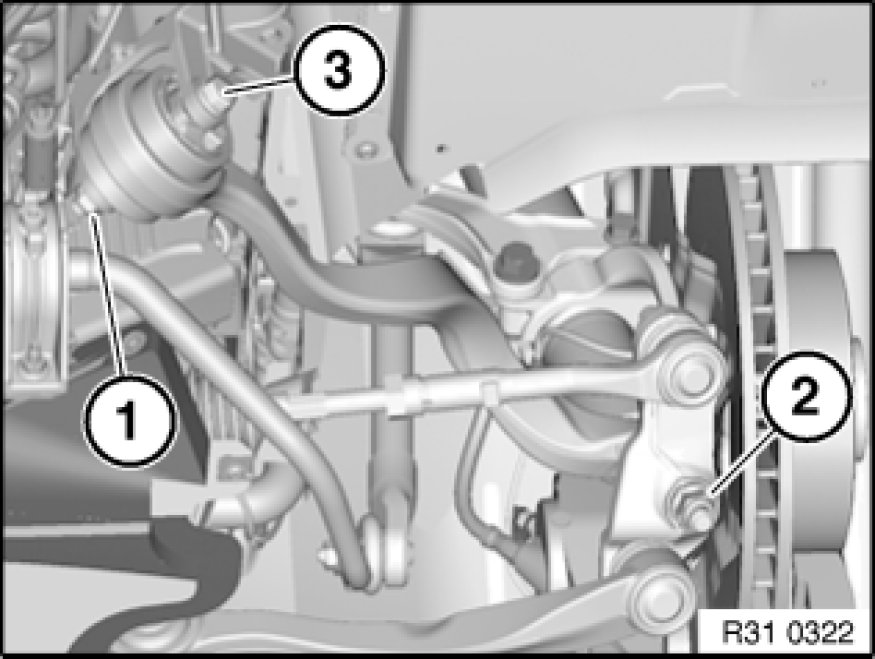

Release nuts (1) and pull out screw (3).

Installation:
Replace self-locking nut.
Tighten bolt connection in normal position Moving Vehicle Into Normal Position.
Tightening torque 31 12 1AZ Control Arms and Struts (Front).

Release nut (2); if necessary, grip at Torx socket.
Turn swivel bearing a little and remove tension strut.

Installation:
Keep tension strut to swivel bearing connection clean and free from oil and grease.
Replace self-locking nut.
Tightening torque 31 12 19AZ Control Arms and Struts (Front).
