Replacing Rear Ride-Height Sensor

37 14 512 - Replacing rear ride-height sensor





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).

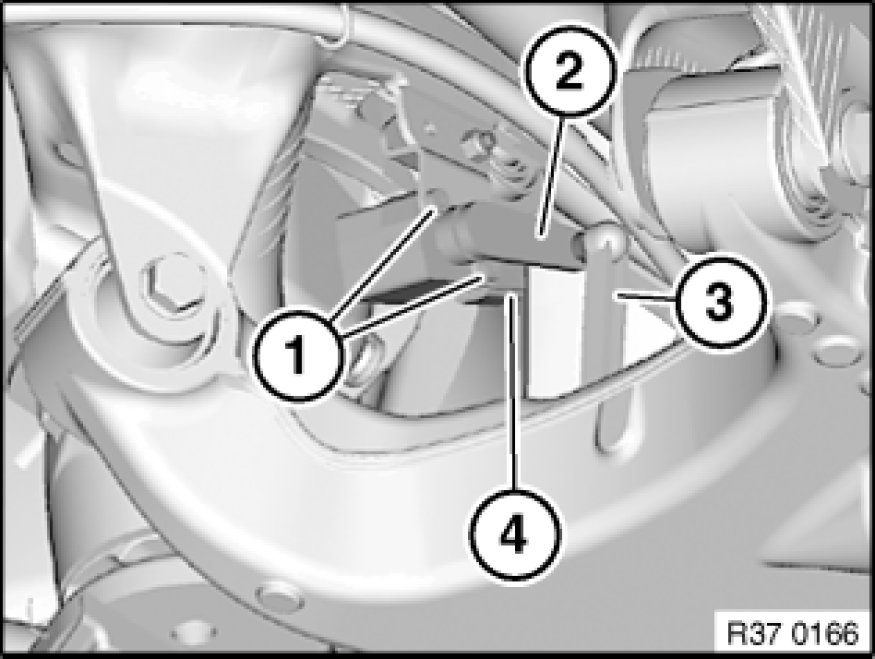

Release nut and disconnect jointed rod (3).

Installation Note:
Replace self-locking nut.
Tightening torque 37 14 7AZ Electric Components.

Release screws (1).
Tightening torque 37 14 6AZ Electric Components.
Disconnect plug connection (4) and remove ride-height sensor.

Installation Note:
Sensor lever (2) must point outwards from ride-height sensor.





After installation:
- E61: Carry out ride-height-calibration

- Check headlight adjustment Adjusting Headlights, correct if necessary
