Removing and Installing/Replacing Rear Mounted Acceleration Sensor

37 14 027 - Removing and installing/replacing rear mounted acceleration sensor (M model)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove luggage compartment trim on side panel on right

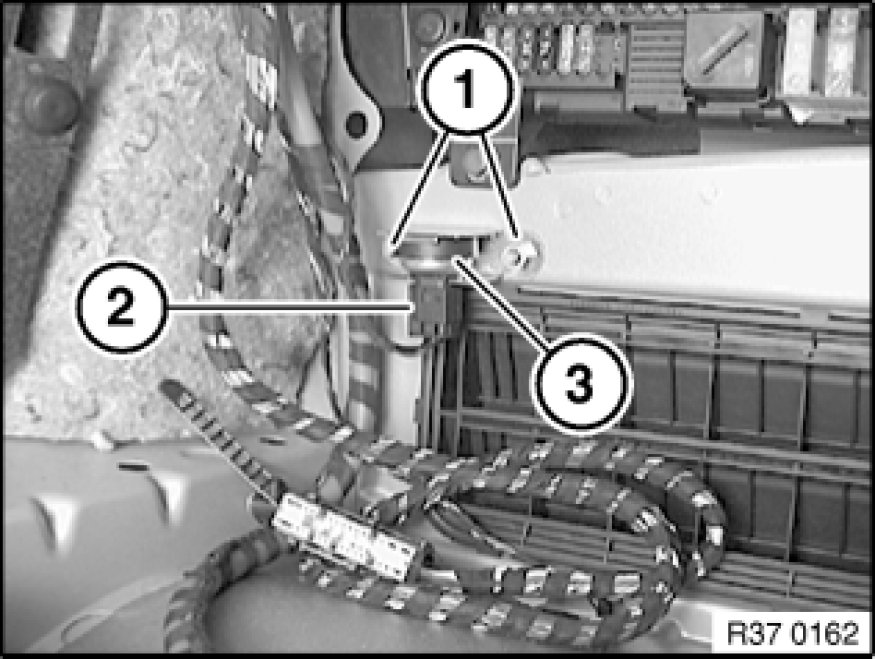

Unscrew nuts (1).
Disconnect connector (2).
Remove rear mounted acceleration sensor (3).
