Replacing Rubber Mount for Rear Differential Mounting at Rear

33 17 005 - Replacing rubber mount for rear differential mounting at rear (M5, M6)





Special tools required:
- 33 2 182 33 2 180 Fixture
- 33 4 181 33 4 180 Removal / Installation Tool
- 33 4 281 33 4 280 Tool
- 33 4 282 33 4 280 Tool
- 33 4 284 33 4 280 Tool
- 33 4 465 33 4 460 Set of Tools
- 33 4 466 33 4 460 Set of Tools





Necessary preliminary tasks:
- Remove rear differential Removing and Installing/Replacing Rear Differential





Important!
Do not draw rear PUR mount as far as it will go into special tool 33 4 281 33 4 280 Tool.

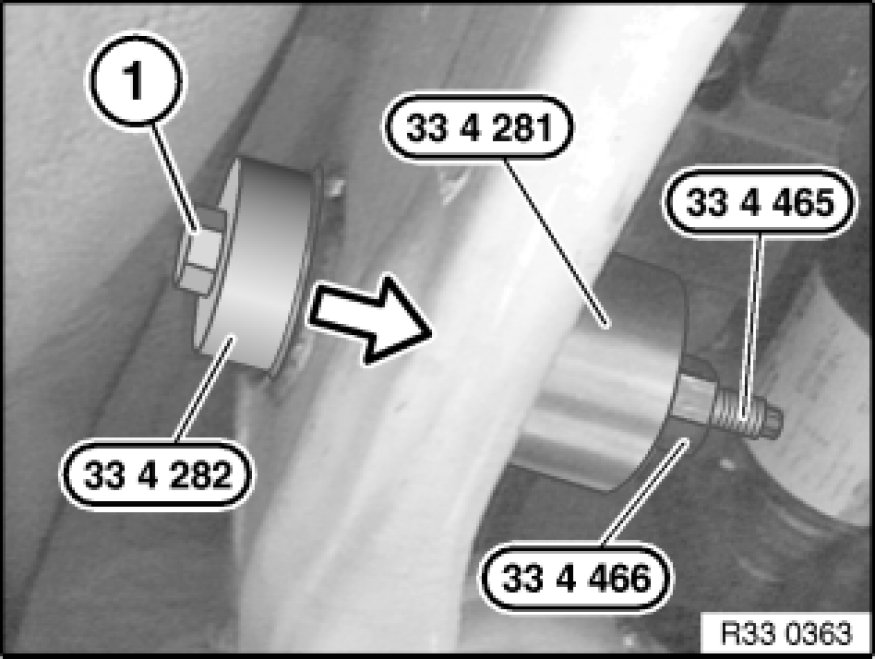

Withdraw rear PUR mount with special tools 33 4 282 33 4 280 Tool, 33 4 281 33 4 280 Tool, 33 4 466 33 4 460 Set of Tools, 33 4 465 33 4 460 Set of Tools and nut (1).
Disassemble special tools.
Withdraw rear PUR mount with the aid of a vice from special tool 33 4 281 33 4 280 Tool.





Important!
Coat bearing bushing in rear axle carrier and new rear PUR mount (1) with Circolight (refer to BMW Parts Service).

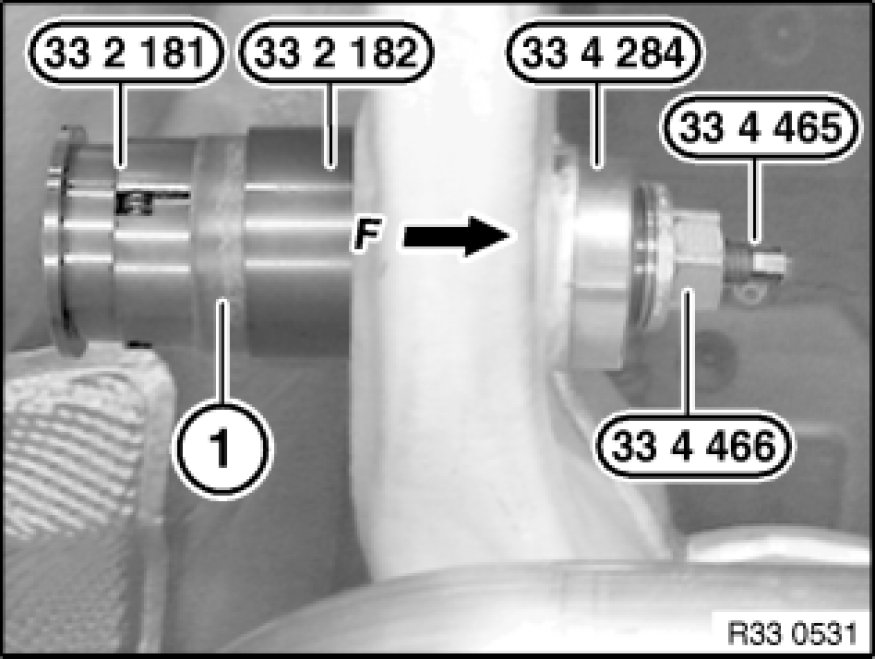

Install rear PUR mount (1) in special tool 33 2 182 33 2 180 Fixture.





Draw in rear PUR mount (1) with special tools 33 4 181 33 4 180 Removal / Installation Tool, 33 2 182 33 2 180 Fixture, 33 4 284 33 4 280 Tool, 33 4 466 33 4 460 Set of Tools and 33 4 465 33 4 460 Set of Tools as far as it will go.
