Removing and Installing/Replacing Front Stabilizer

31 35 000 - Removing and installing/replacing front stabilizer





Necessary preliminary tasks:
- Remove front assembly underside protection Removing and Installing/Replacing Front Underbody Protection
- If necessary, remove wheel suspension cover on both sides
- Remove stabilizer link on both sides from stabilizer Removing and Installing/Replacing Push Rod (Stabilizer Link) for Left/Right Stabilizer





If necessary, remove holder for hydraulic lines from retaining bracket.

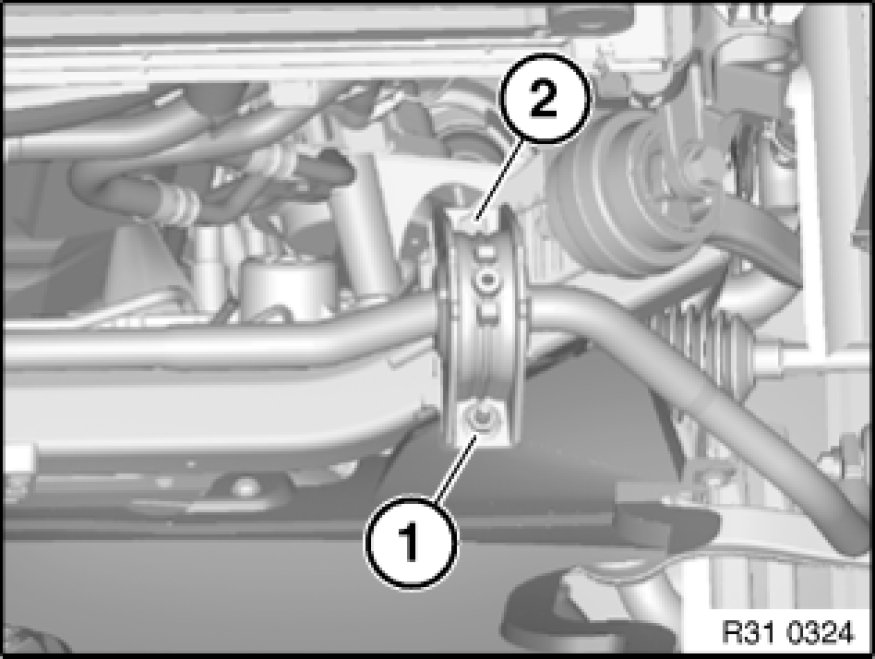

Release nut (1) and screw (2) at both ends.
Remove stabilizer from front axle carrier.

Installation:
Check both rubber mounts Replacing Rubber Mounts of Stabilizer Retaining Fixture on Front Axle Carrier for damage, replace if necessary.
Replace self-locking nuts.
Tightening torque 31 35 1AZ Front Axle - Stabilizer Bar.





Replacement:
Remove rubber mount on both sides from stabilizer Replacing Rubber Mounts of Stabilizer Retaining Fixture on Front Axle Carrier.
