Removing and installing/replacing steering wheel electronics control unit

61 31 231 - Removing and installing/replacing steering wheel electronics control unit





Necessary preliminary tasks:
- Remove airbag unit Removing and Installing / Replacing Airbag Unit





E60, E61: Version with standard steering wheel, illustrations show steering wheel removed:

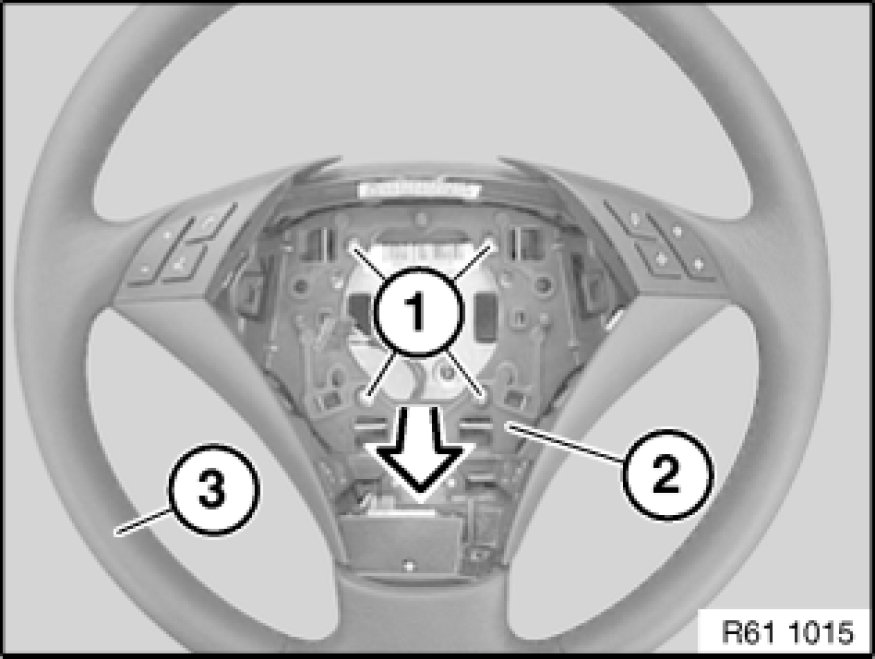

Release screws (1).
Remove steering wheel retaining plate (2) upwards out of multifunction steering wheel (3).





E60, E61: Version with sports steering wheel; E63, E64, illustrations show steering wheel removed:
Release screws (1).

Important!
Risk of breakage!
Lever out complete steering wheel retaining plate (4) with decorative trim (3) all round, do not tilt!

Release complete steering wheel retaining plate (4) with decorative trim (3) in direction of arrow from fixtures (2).

Disconnect associated plug connections and remove complete steering wheel retaining plate (4) with decorative trim (3).

Installation:
Make sure electrical leads are correctly routed.





All:

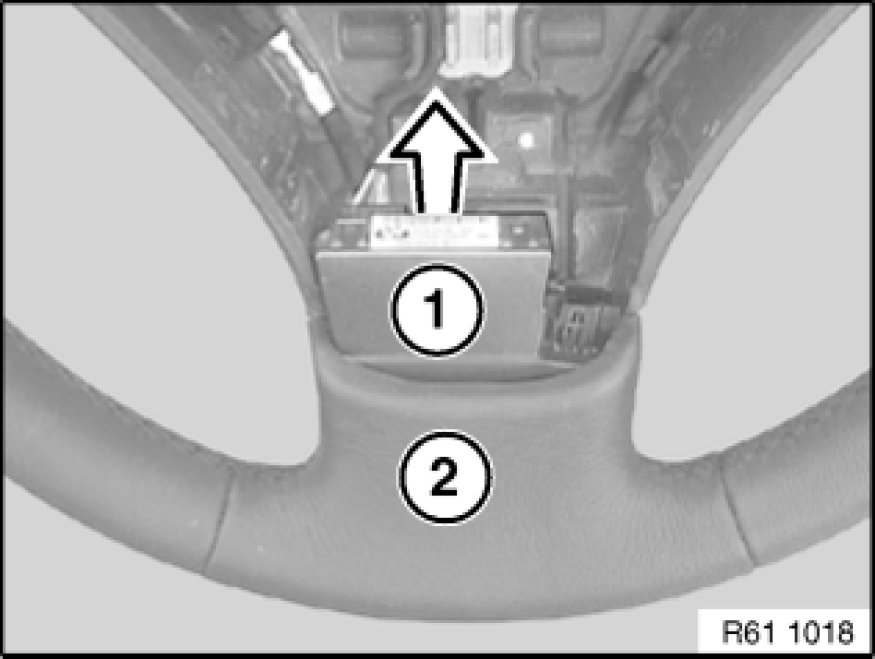

Pull steering wheel electronics control unit (1) in direction of arrow out of steering wheel (2).

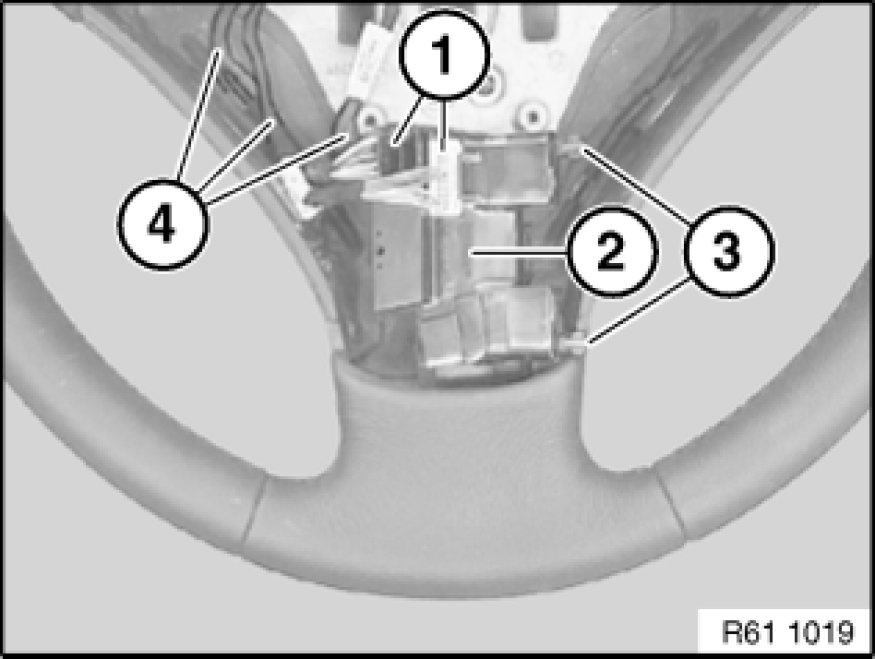

Unlock plug connections (1) and disconnect.
Remove steering wheel electronics control unit (2).

Installation:
Guide pins (3) of steering wheel electronics control unit (2) must be exactly seated in associated mountings.
Make sure electrical leads (4) are correctly routed.
