Removing and Installing/Replacing Steering Wheel

32 33 001 - Removing and installing/replacing steering wheel





Note:
Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.





Necessary preliminary tasks:
- Remove airbag unit Removing and Installing / Replacing Airbag Unit





Move sport steering wheel to straight-ahead position.

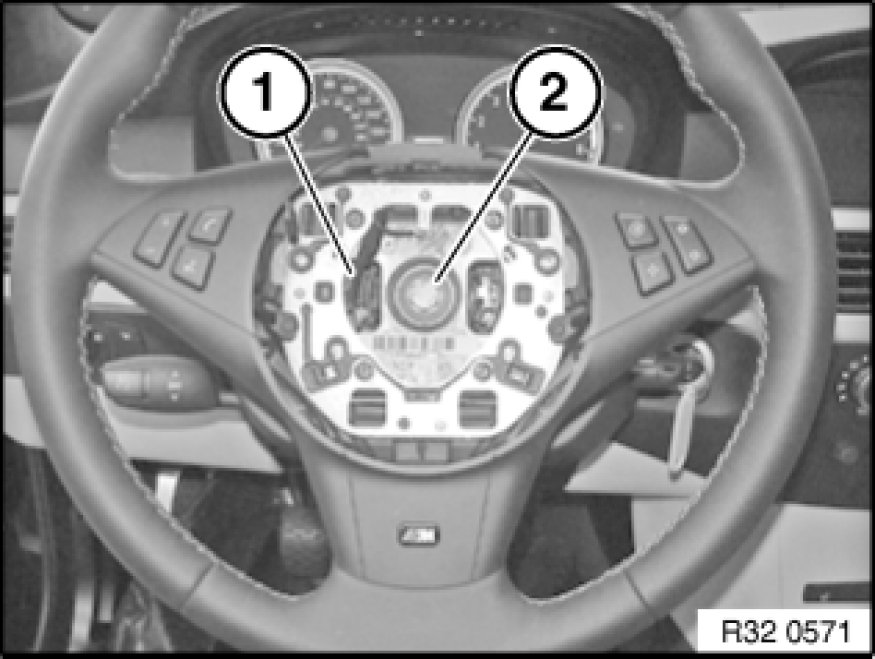

Disconnect plug connection (1).
Release screw (2) and remove steering wheel.
Secure volute spring cassette with adhesive tape against twisting.

Installation:
Make sure connecting lead(s) is/are correctly laid.
Tightening torque 32 33 1AZ [1][2]Specifications.





Installation:

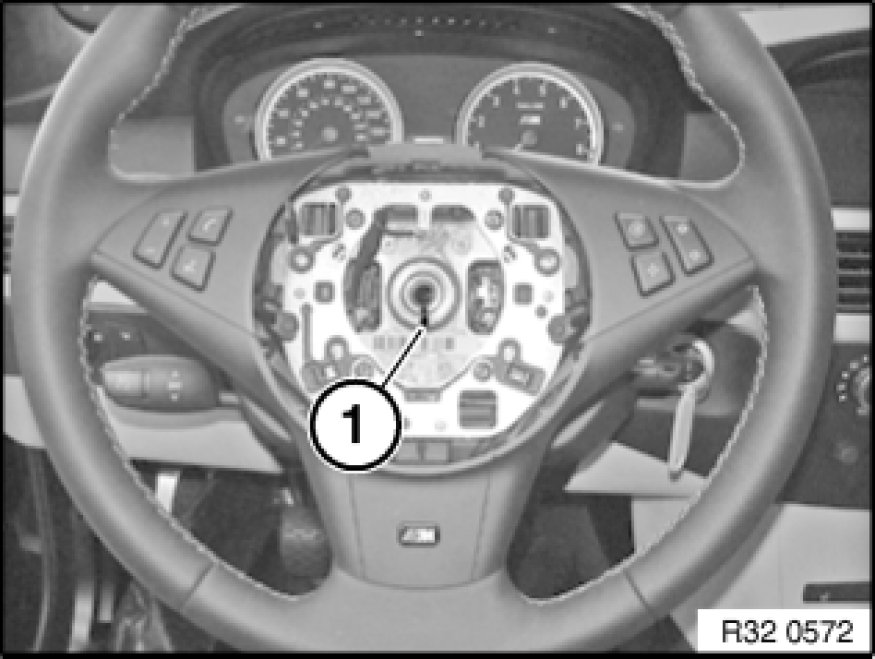

Align steering wheel using markings (1) to steering column and attach.





Replacement:
- Remove retaining plate for multifunction steering wheel switch
- Version with Sequential Manual Gearbox/Transmission: Remove shift paddles
- Version with Lane Departure Warning: Remove Lane Departure Warning motor electrics Service and Repair
