Removing and Installing/Replacing Upper Section of Steering Column Trim

32 31 004 - Removing and installing / replacing upper section of steering column trim





Necessary preliminary tasks:
- Remove lower section of trim Removing and Installing/Replacing Lower Section of Steering Column Trim
- Move steering column into "lower" and "extended" position

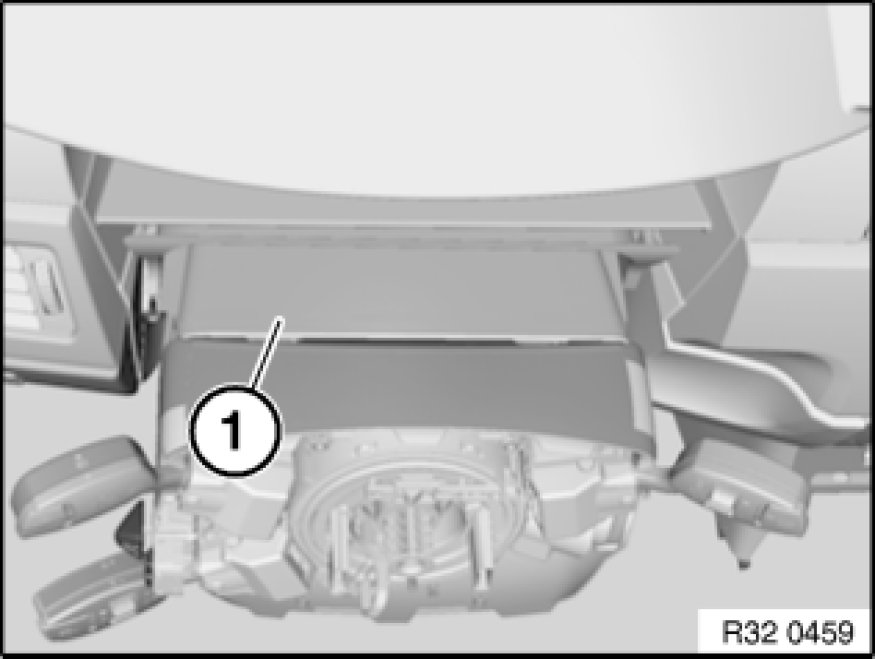

Unclip steering column cover (1) from upper section of trim.

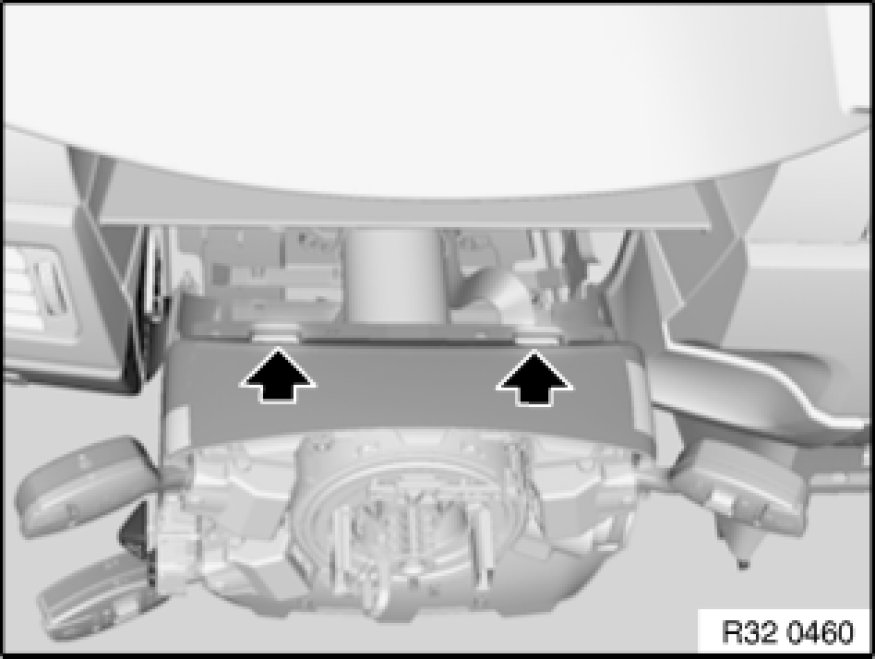

Unfasten screws.

Installation:
Replace expansion rivets.

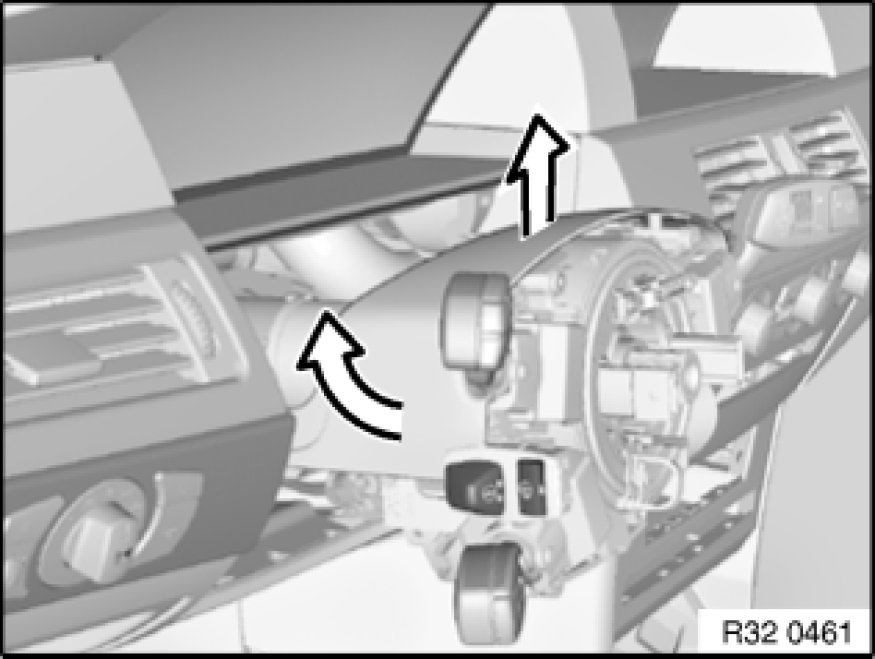

Bend upper section of trim on both sides outwards and remove towards top.





Installation:
Locks (2) must engage in hooks (1) on both sides.
