Removing and Installing/Replacing Drive Unit for Electric Steering Column Adjustment

67 64 010 - Removing and installing/replacing drive unit for electric steering column adjustment





Necessary preliminary tasks:
- Move steering wheel into maximum "lower" and "extended" position
- EUR only: Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.
- US only: Remove panel for active knee protection, left 51 45 177 - Removing and installing/replacing panel for active knee protector on left

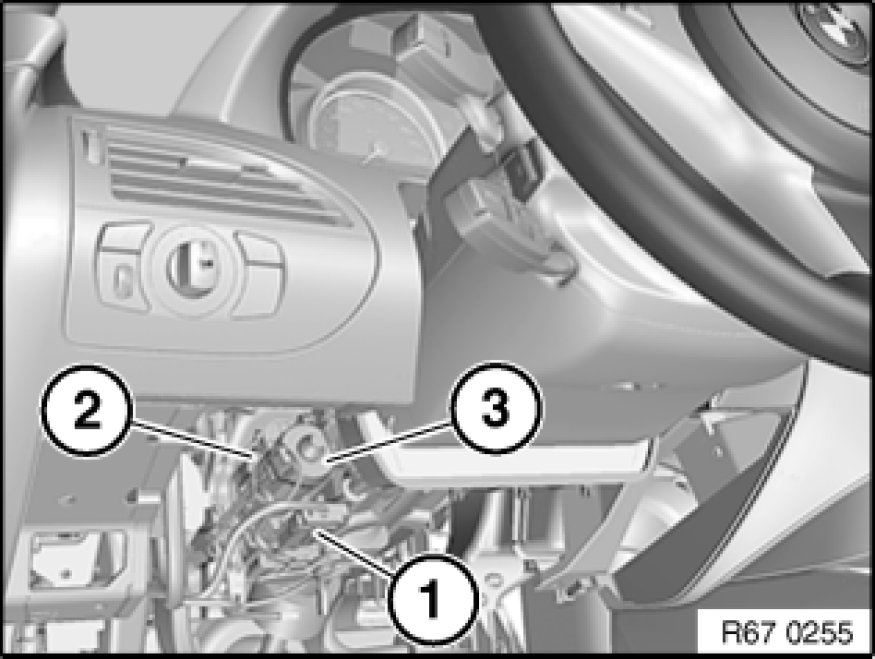

Unlock plug connections (1) and (2) of drive unit for electric steering column adjustment (3) and disconnect.





Note:
For purposes of clarity, illustrations show steering column removed.

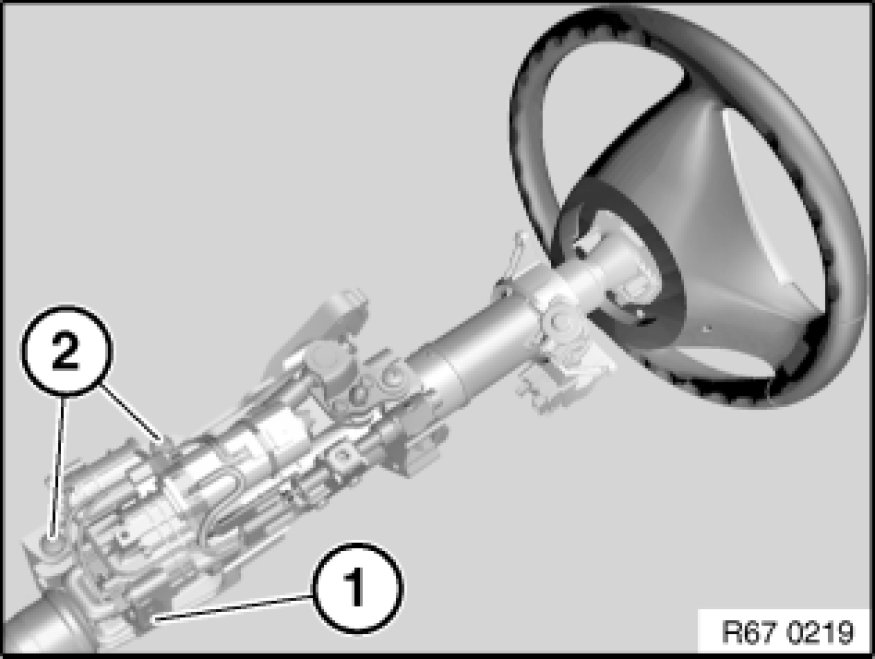

Remove screws (1) and (2).

Installation:
Replace screws (1) and (2).
Tightening torque 32 31 12AZ [1][2]Specifications.





Important!

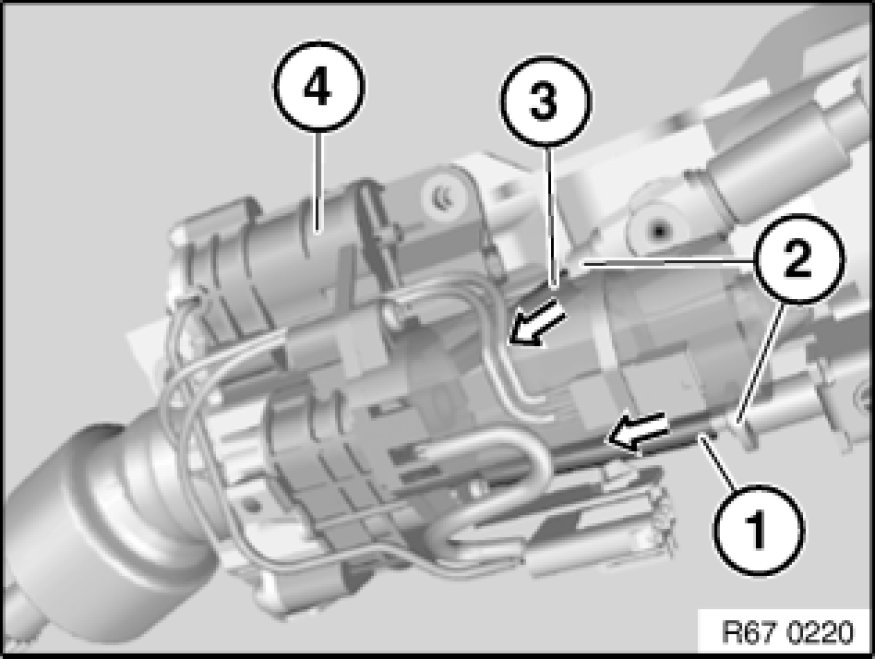

Pay attention to drive shafts (1) and (3) when removing and installing drive unit for electric steering column adjustment (4). Do not bend or twist.
Drive shafts (1) and (3) must be exactly inserted in associated mountings (2).

Detach drive shafts (1) and (3) from associated mountings (2) and remove drive unit for electric steering column adjustment (4).





Installation:

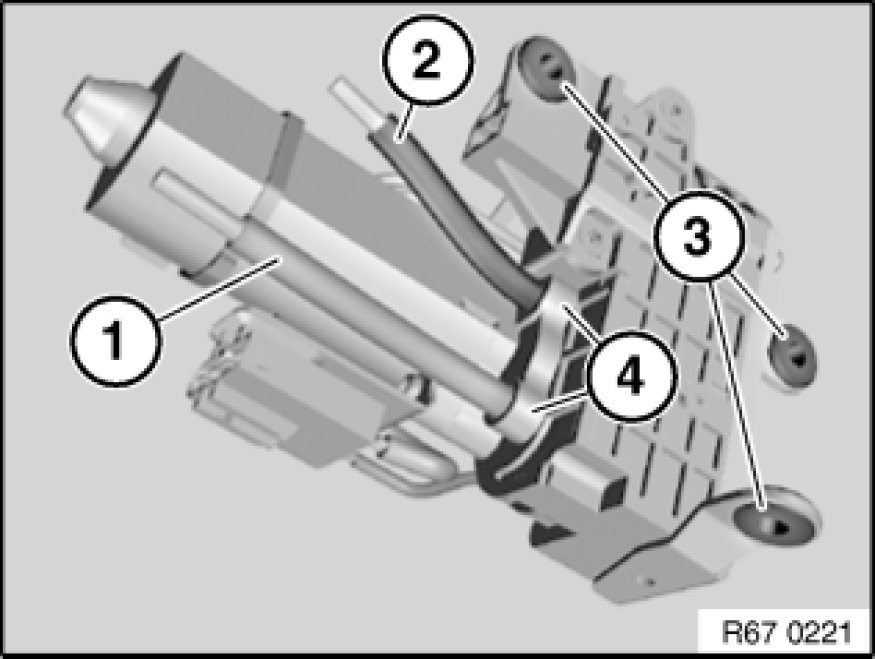

Longer drive shaft (1) is located in installation position under shorter drive shaft (2).
Drive shafts (1) and (2) must be exactly inserted in associated mountings (4).
If necessary, replace plastic mount (3).
