Replacing Front Ride-Height Sensor

37 14 511 - Replacing front ride-height sensor (M5, M6)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove right steering gear cover

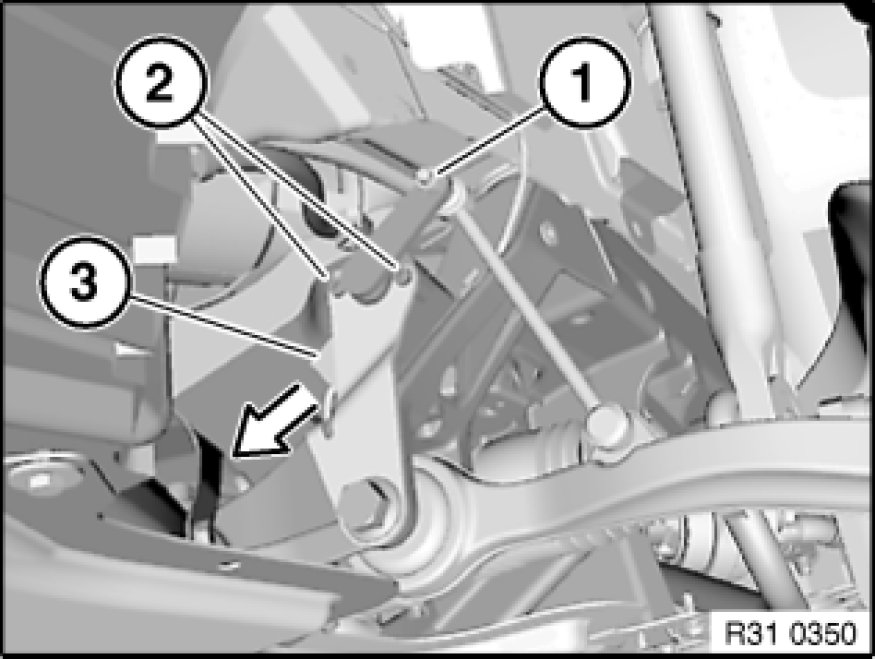

Release nut (1) and disconnect jointed rod.
Tightening torque 37 14 7AZ Electric Components.
Release screws (2), remove ride-height sensor from bracket and disconnect plug connection (3).

Installation Note:
Sensor lever must point from ride-height sensor to right front wheel.
Tightening torque 37 14 6AZ Electric Components.





After installation:
- Check headlight adjustment Adjusting Headlights, correct if necessary
