Replacing Wiring Harness in Left or Right Front Door

61 12 200 - Replacing wiring harness in left or right front door





Necessary preliminary tasks:
- Close front side window completely
- Remove luggage compartment floor trim panel 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel
- Disconnect battery negative lead Disconnecting and Connecting Battery Negative Lead
- Remove trim on armrest of front door 51 41 075 - Removing and installing/replacing trim on armrest on left or right rear door
- Remove rocker switch for side window operation Service and Repair
- Remove front door trim panel Removing and Installing Left or Right Front Door Trim Panel
- Remove front acoustic insulation Removing and Installing/Replacing Sound Insulation in Left or Right Front Door

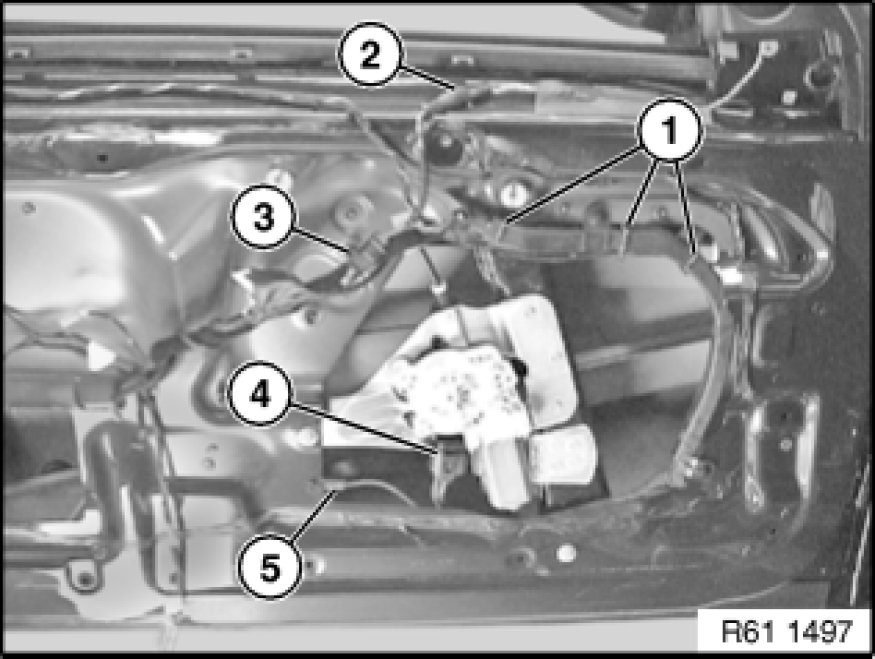

Unlock plug connection (3) for outside door mirror and disconnect.
Disconnect cable ties (1) and feed out wiring harness for outside door mirror.
Unlock and disconnect plug connection (2) for speaker.
Unlock and disconnect plug connection (4) for power window.
Disconnect plug connection (5) on door pressure sensor.

Installation:
Make sure door wiring harness is correctly laid.

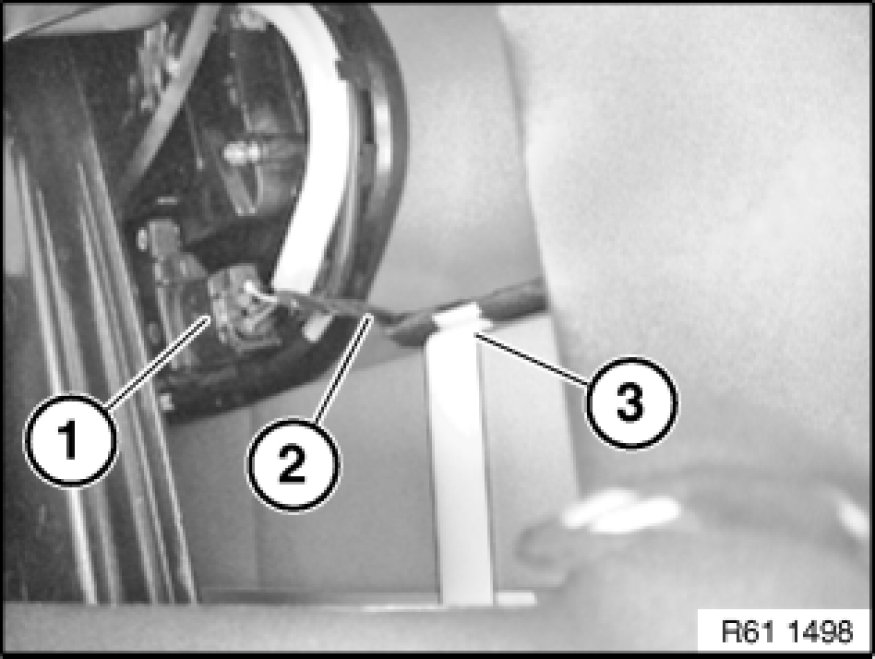

Unfasten plug connection (1) and disconnect.
Unclip wiring harness (2) at points (3).

Installation:
Make sure wiring harness is correctly laid.

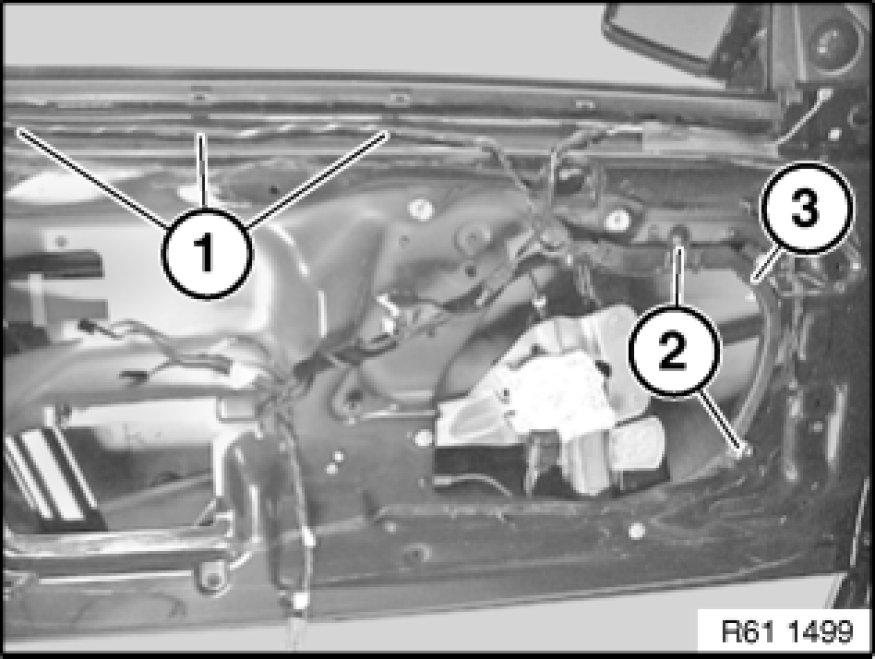

Unclip door wiring harness (3) at points (1).
Release expansion rivets (2).

Installation:
Make sure door wiring harness is correctly laid.





Release screw (1), fold door wiring harness plug on A-pillar (2) downwards slightly and remove.
Unlock plug connection behind and disconnect.
Pull rubber grommet (3) out of front door.
Feed out door wiring harness towards front to A-pillar and remove.
