Removing and Installing/Replacing Fiber-Optic Cable Connector

61 13 ... - Removing and installing/replacing fiber-optic cable connector





Important!
Comply with notes and instructions on handling optical waveguides 61 00 ... Notes on Handling Optical Fibers.





Necessary preliminary tasks:
- Remove backrest for rear seat Removing and Installing/Replacing Backrest

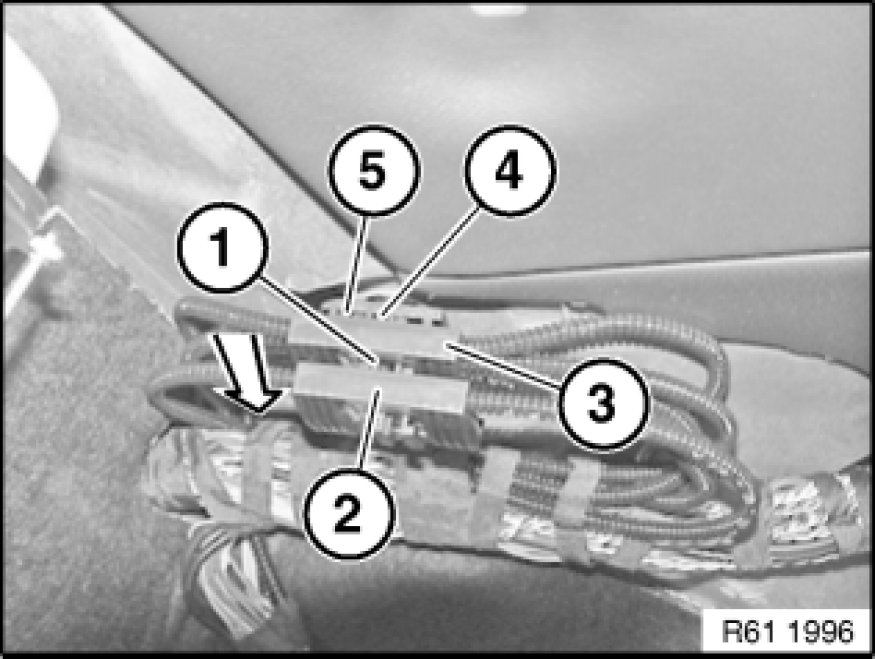

Unlock catch (1) and detach fiber-optic cable connector (2) in downward direction from fiber-optic cable connector (3).
Unlock catch (4) and detach fiber-optic cable connector (3) in downward direction from holder (5).

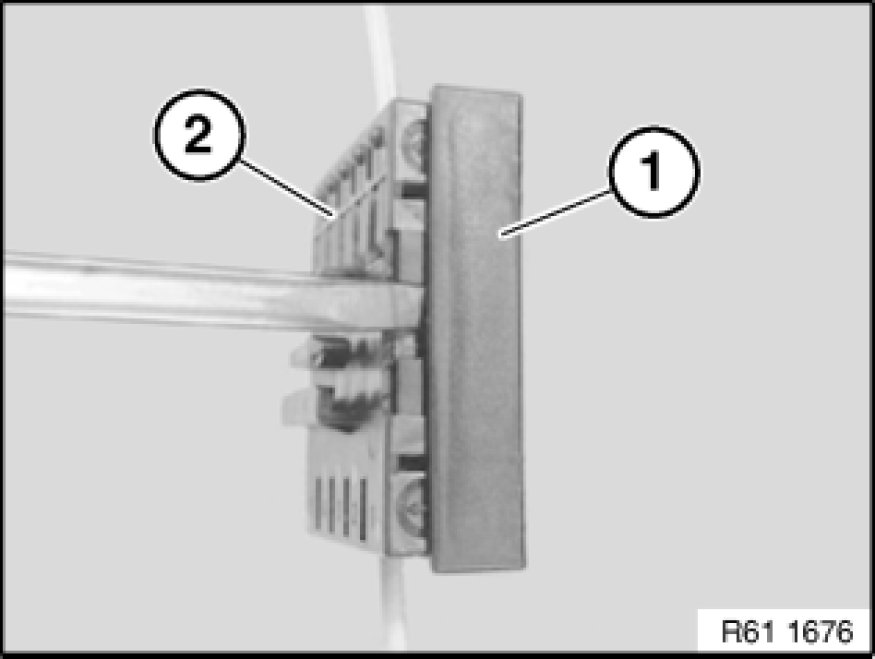

Carefully raise cover cap (1) with a suitable tool and remove from fiber-optic cable connector (2).

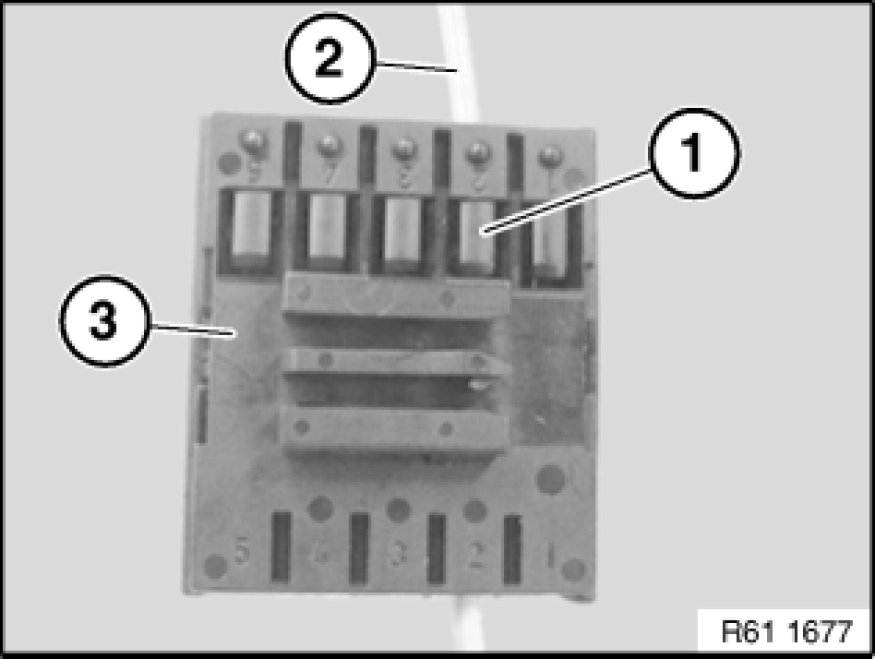

Carefully raise lock (1) and pull fiber-optic cable (2) out of fiber-optic cable connector (3).

Installation Note:
Make sure fiber-optic cable (2) is correctly seated and engaged in fiber-optic cable connector (3).
