Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> Control Arm >> Control Arms And Struts (Rear)

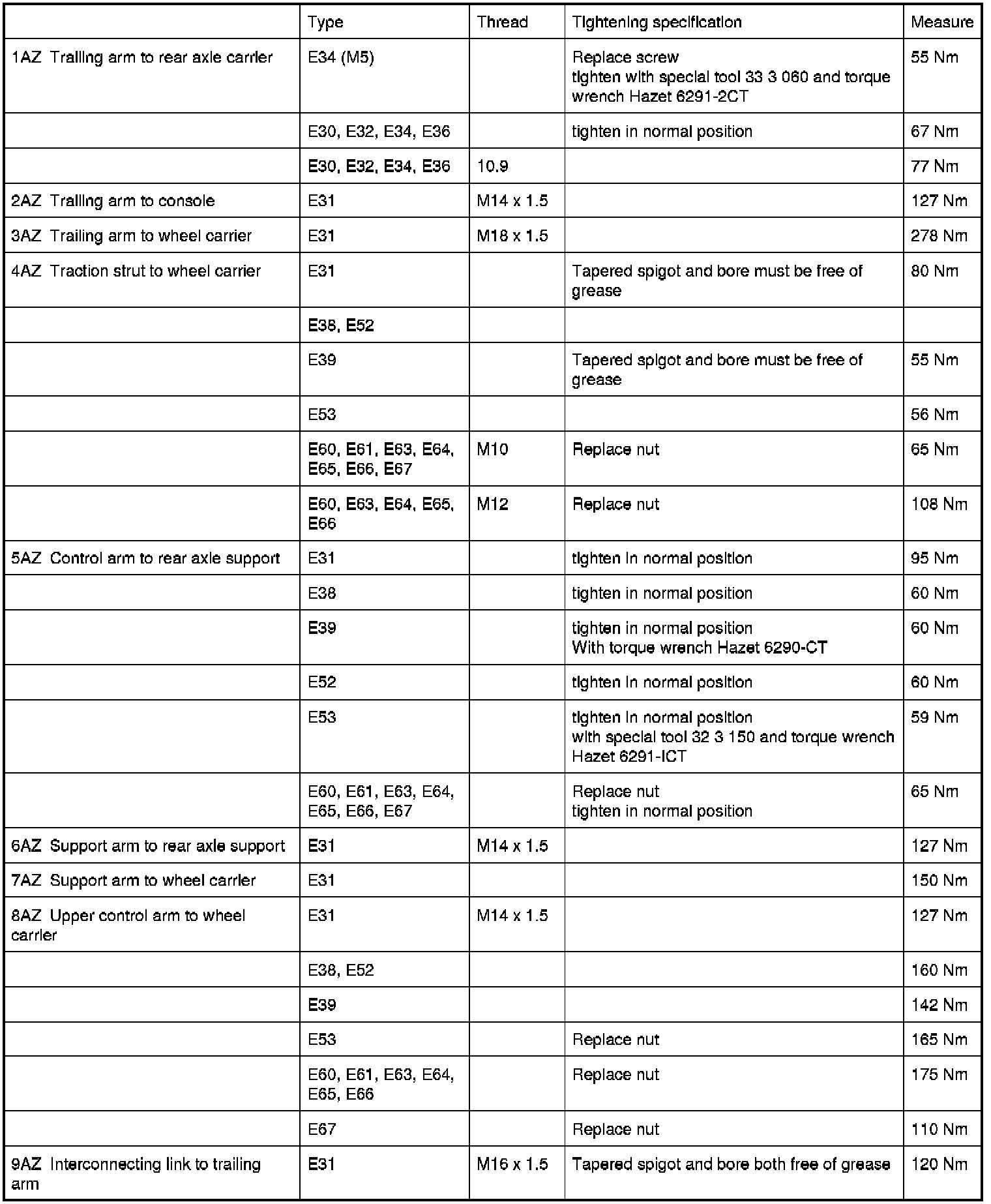

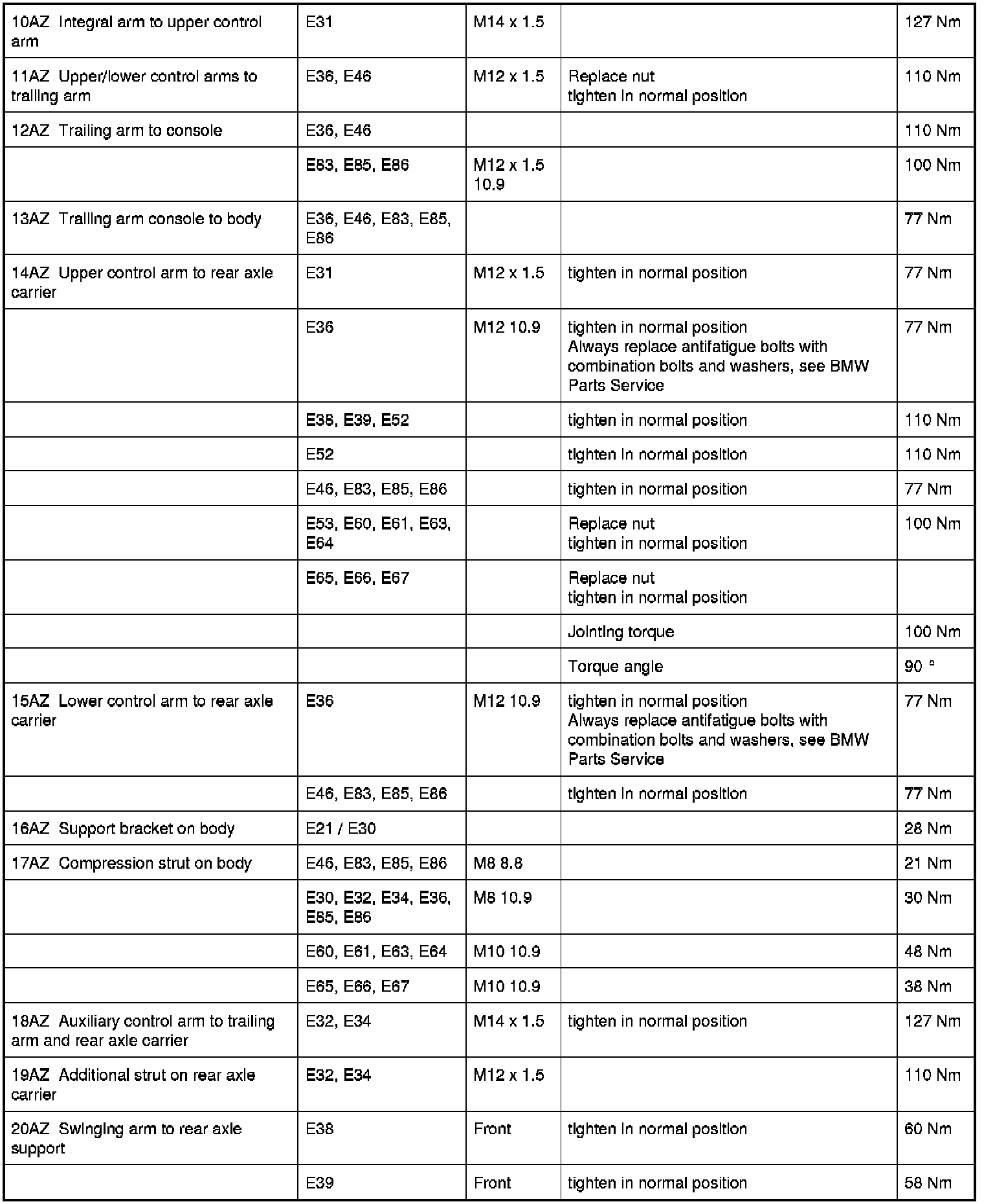

Control Arms And Struts (Rear)




33 32 Control Arms and Struts
