Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Case, M/T >> 1AZ - 6AZ

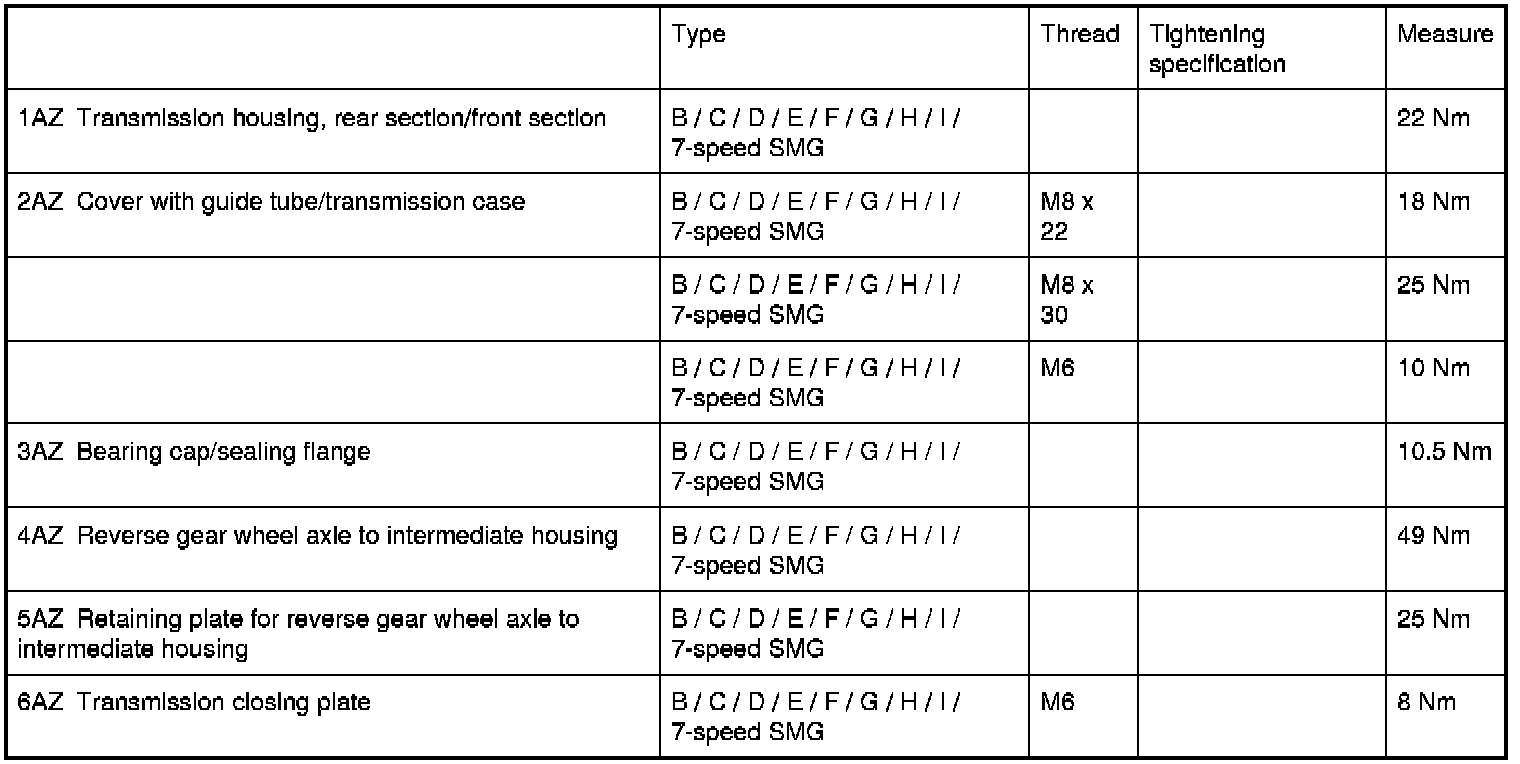

1AZ - 6AZ




23 11 Case and Cover
