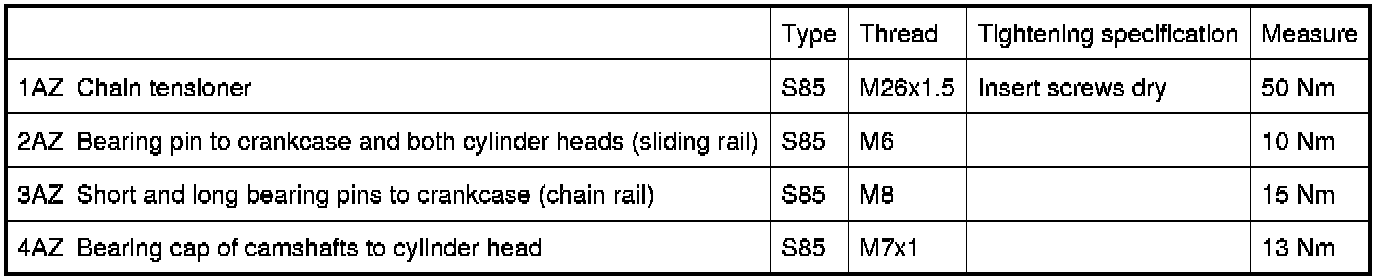

11 31 Camshaft




11 31 Camshaft





Please refer to Camshaft Bearing Cap Tightening Specifications for additional information. Specifications
