Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive/Propeller Shaft >> Propeller Shaft Complete >> 1AZ - 3AZ

1AZ - 3AZ

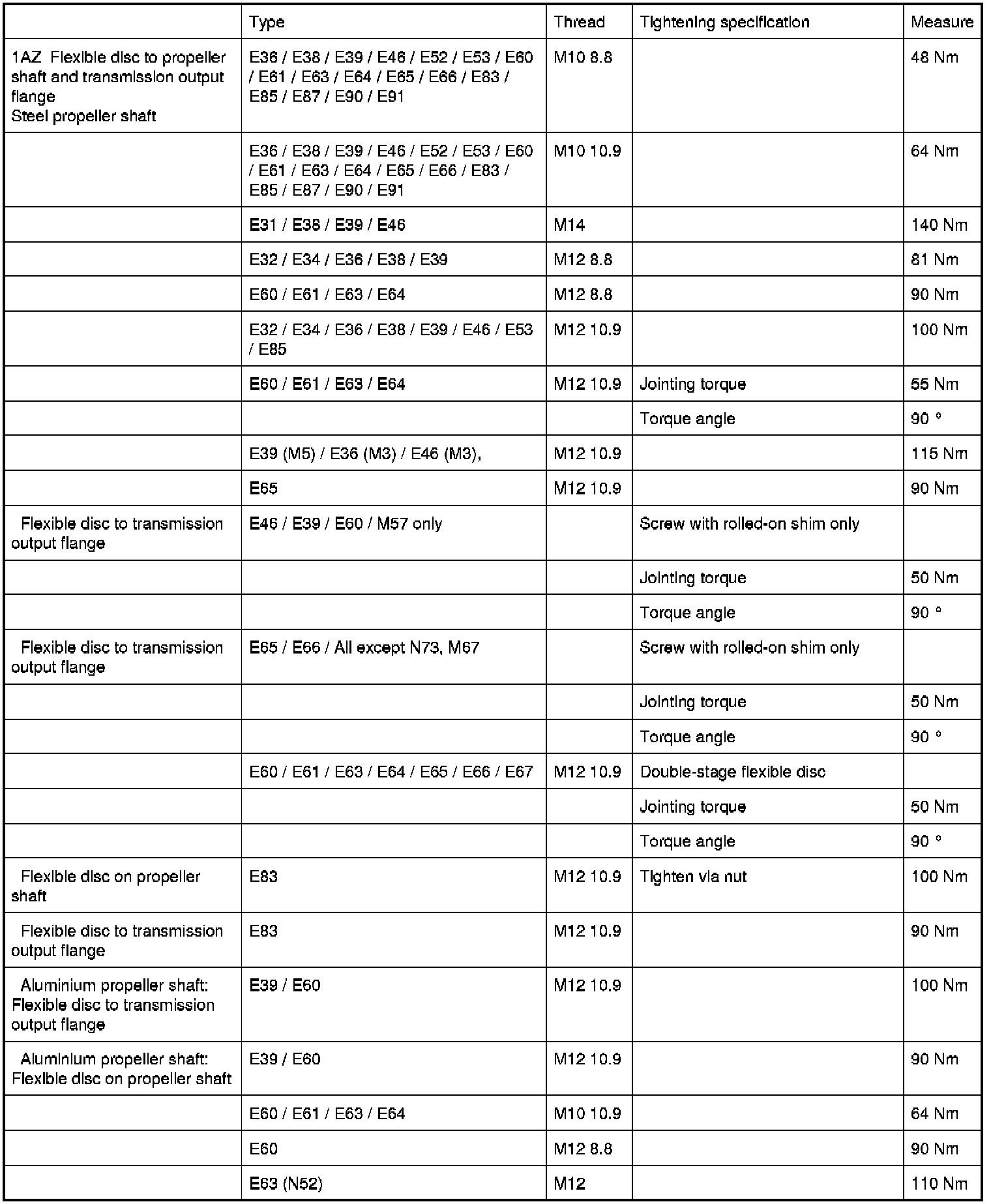

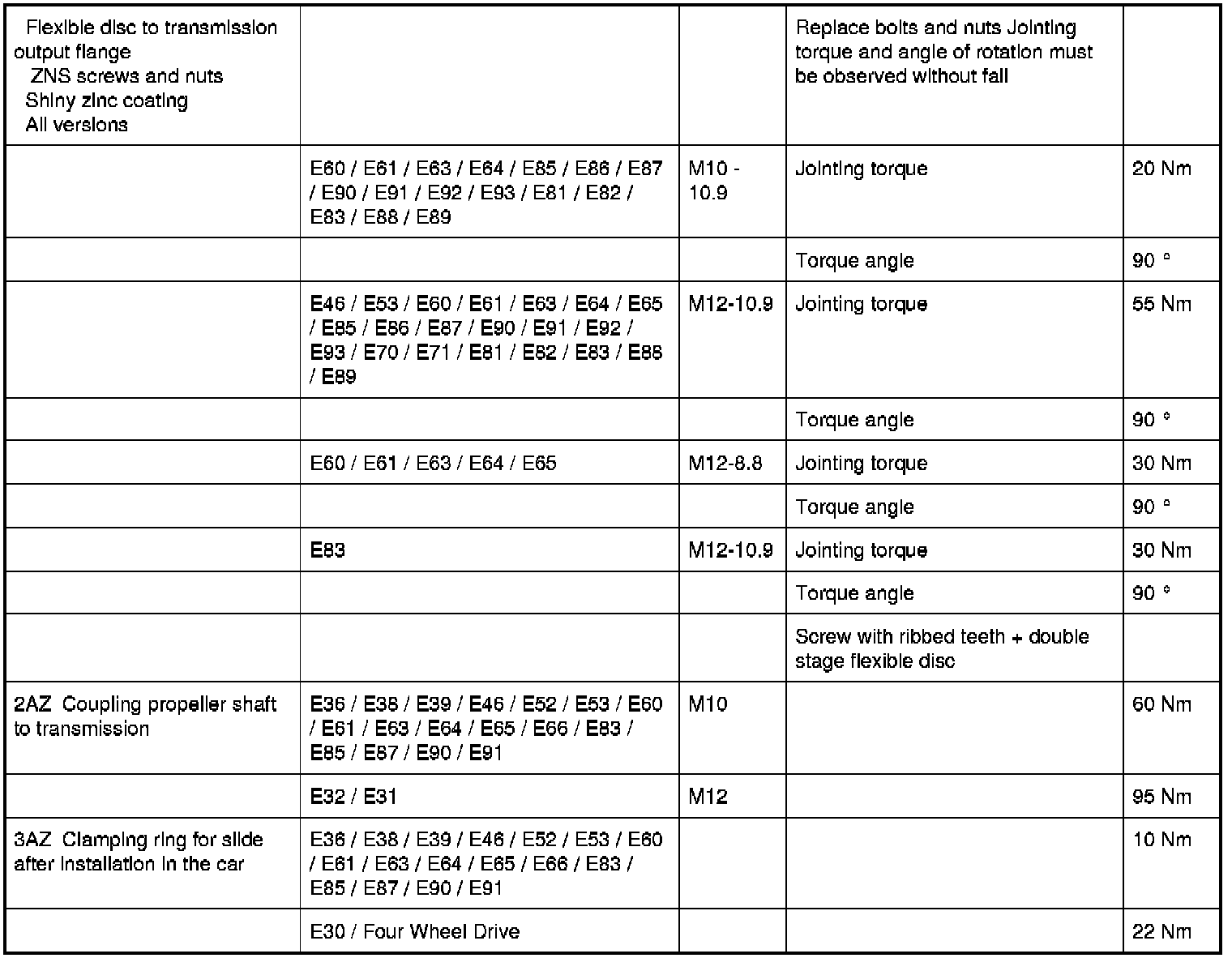

26 11 Propeller Shaft complete
