Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications >> Torque Specifications >> Clutch Disc and Drive Plate

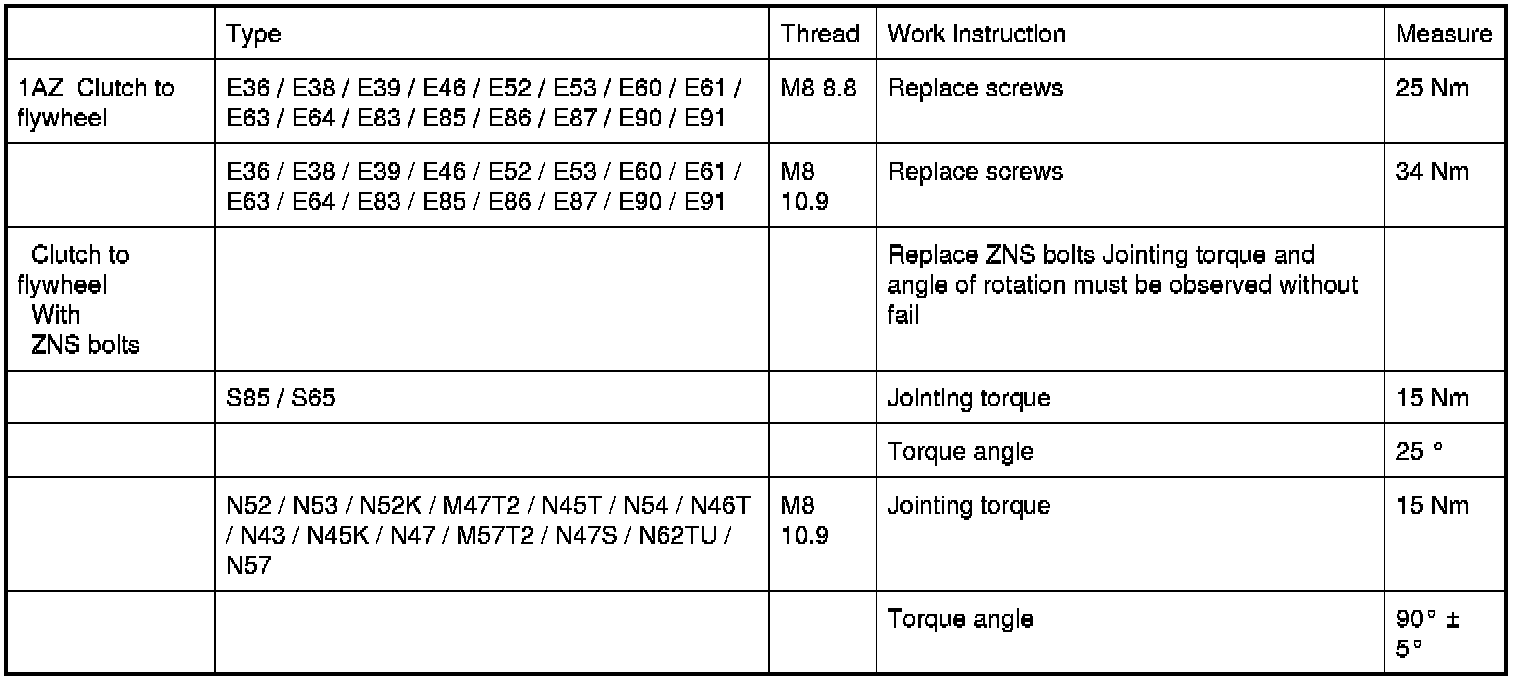

Clutch Disc and Drive Plate




21 21 Clutch Disc and Drive Plate
