Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Locations >> Overview of airbag modules, seat belts, airbag control units and rollover protection bars

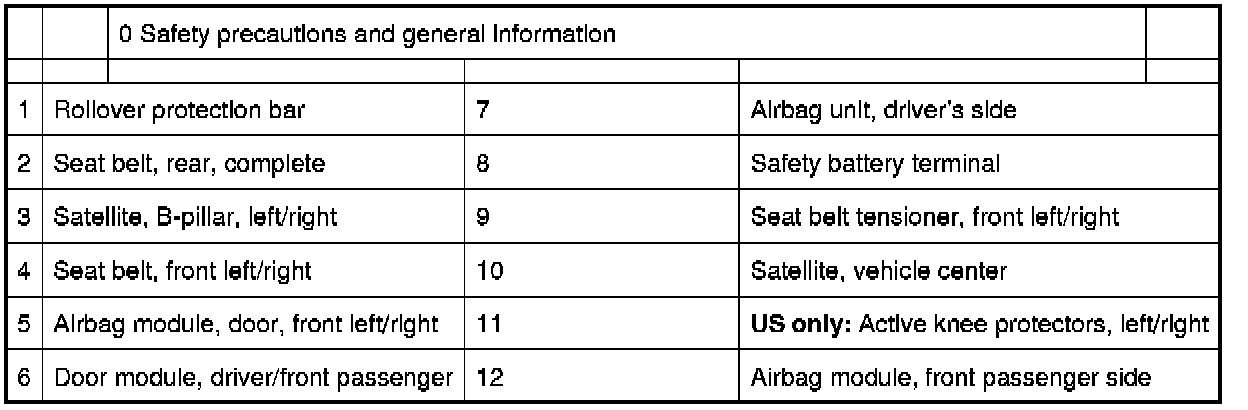

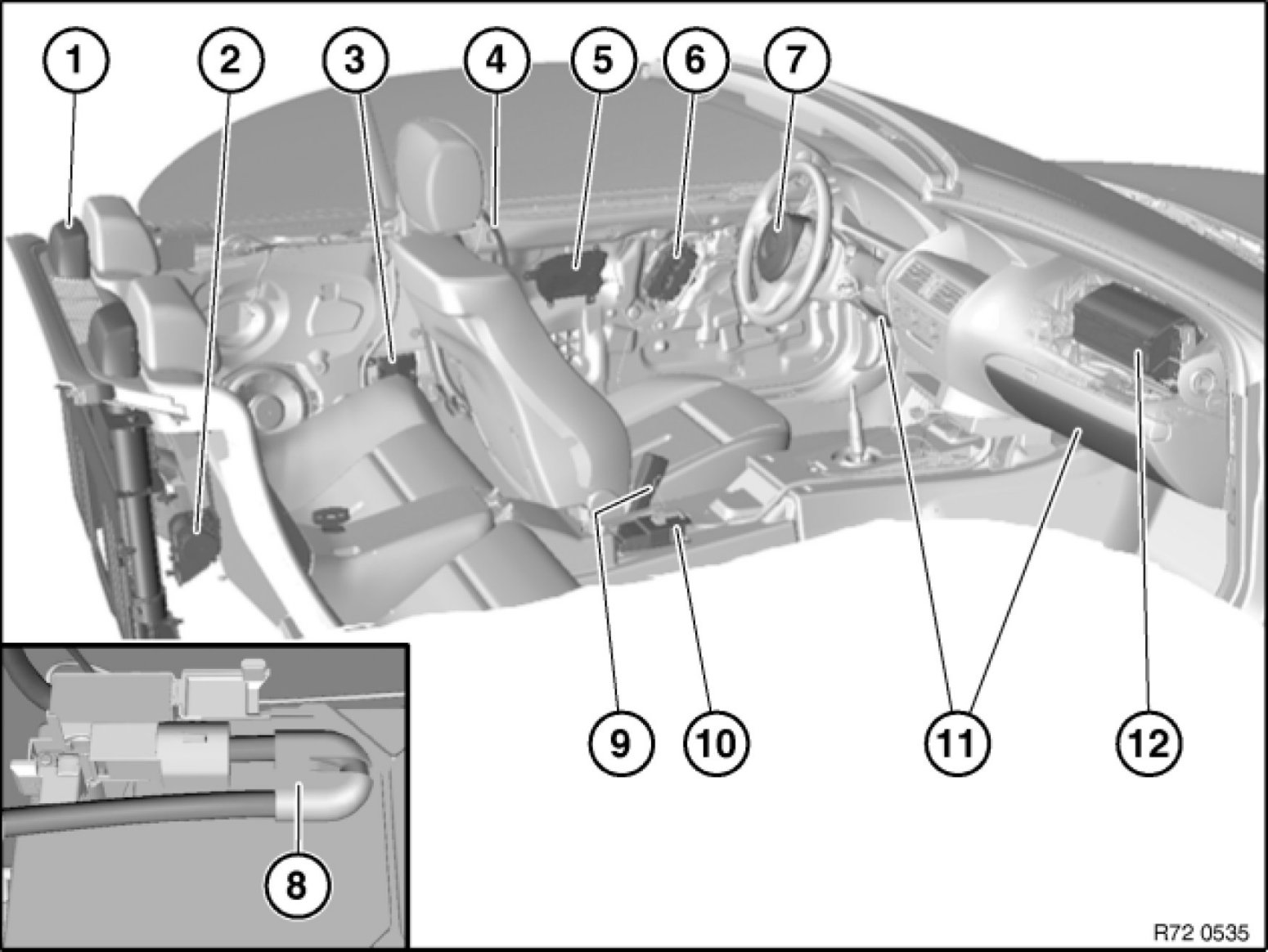

Overview of airbag modules, seat belts, airbag control units and rollover protection bars




72 12 ... - Overview of airbag modules, seat belts, airbag control units and rollover protection bars
