Removing and Installing / Replacing Rear Pressure Sensor for ACC

34 52 580 - Removing and installing / replacing rear pressure sensor for ACC





Note:
Read and comply with General Information Service and Repair.

After completing work: Bleed braking system Replacing Fluid in ABS/ASC+T Brake System





Press clutch pedal down to floor and secure with pedal support.

Note:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.





Vehicles with N52 engine:

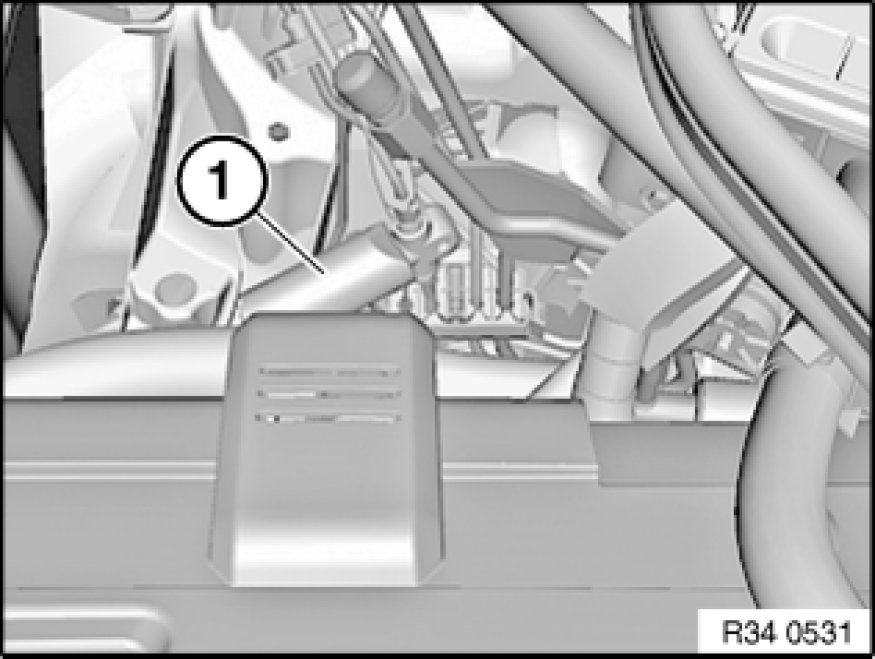

If necessary, remove heat shield (1).

Installation Note:
Make sure heat shield is correctly seated.
If necessary, replace heat shield.

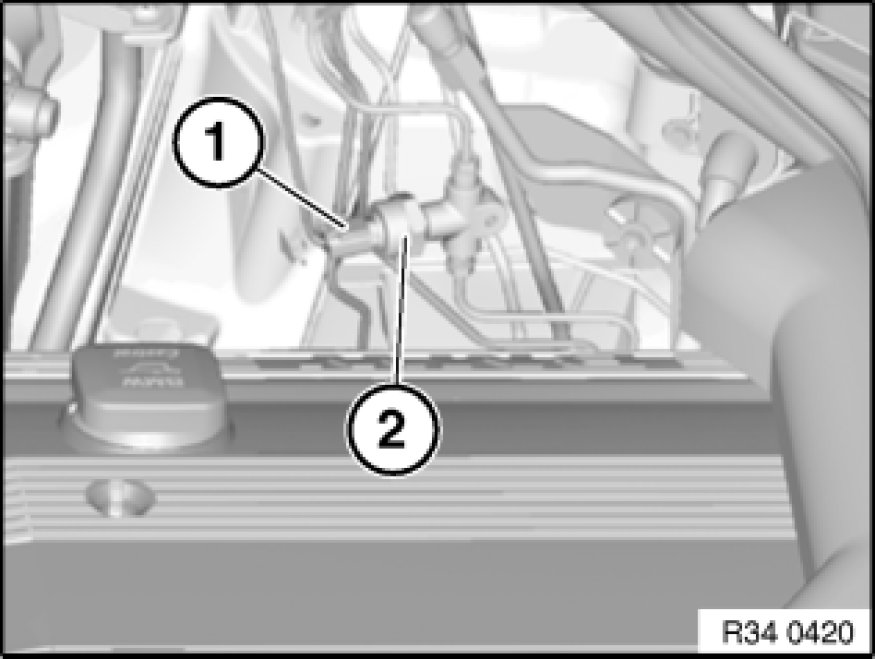

Disconnect plug connection (1).
Release pressure sensor (2) and remove.

Installation:
Tightening torque 34 51 12AZ 34 51 Slip Control System (ABS, ASC+T, DSC).
