Removing and Installing / Replacing Front Pressure Sensor for ACC

34 52 575 - Removing and installing/replacing front pressure sensor for ACC





Necessary preliminary tasks:
- Remove front right wheel arch trim Service and Repair
- Read and comply with General Information Service and Repair.

After completing work: Bleed braking system Replacing Fluid in ABS/ASC+T Brake System





Press clutch pedal down to floor and secure with pedal support.

Note:
The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

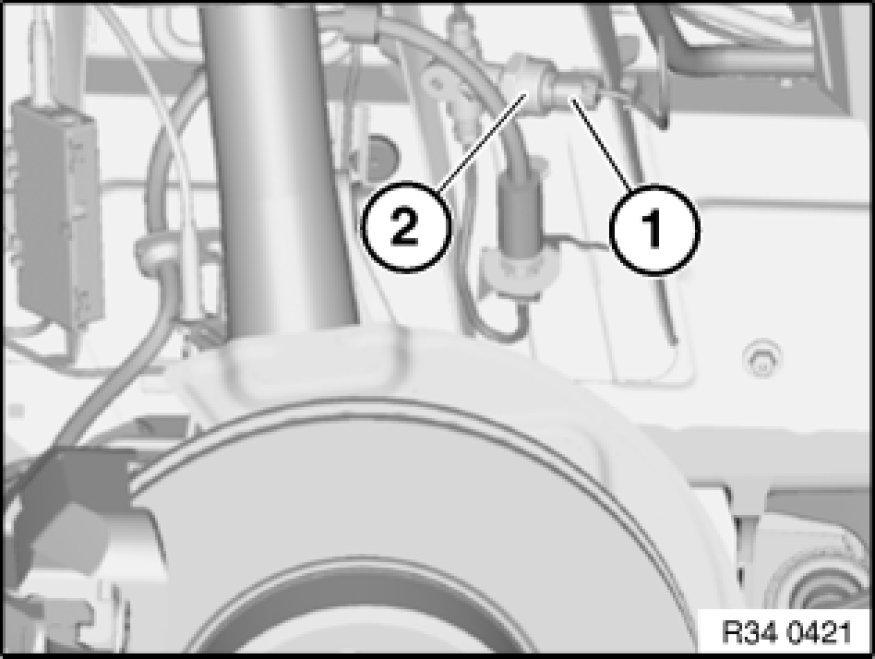

Unfasten plug connection (1).

Release pressure sensor (2) and remove.

Installation Note:
Tightening torque 34 51 12AZ 34 51 Slip Control System (ABS, ASC+T, DSC).
