Removing and Installing/Replacing a Rear Ultrasonic Transducer (Park Distance Control)

66 20 540 - Removing and installing/replacing a rear ultrasonic transducer (Park Distance Control)





Necessary preliminary tasks:
- Remove rear bumper trim .

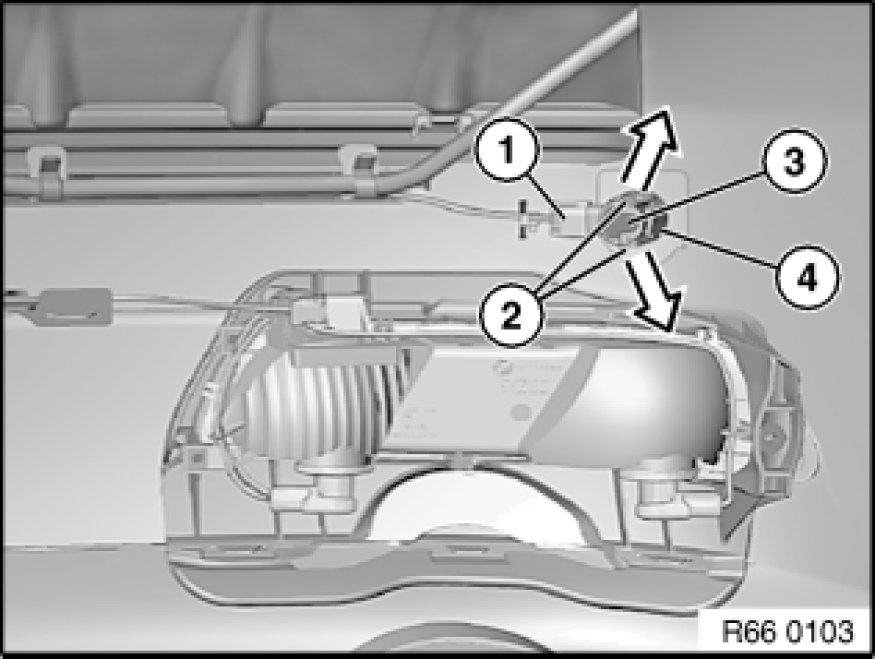

Unfasten plug connection (1) and disconnect.
Unlock catches (2) in direction of arrow and pull ultrasonic transducer (3) out of bracket (4).





Installation:

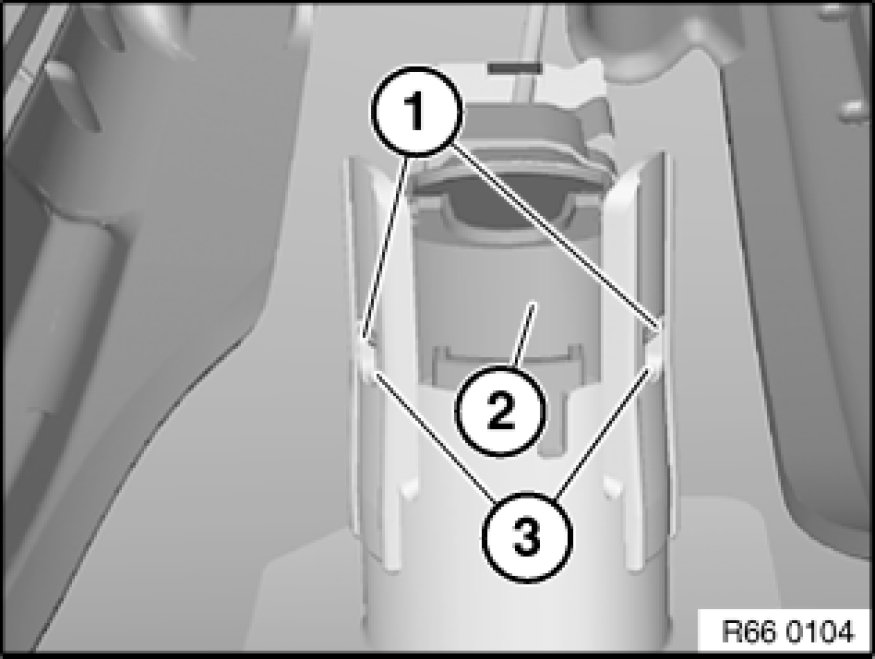

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).
