Removing and Installing/Replacing Rear Left or Right Seat Belt (Roller)

72 11 092 - Removing and installing/replacing rear left or right seat belt (roller)





Necessary preliminary tasks:
- Remove backrest for rear seat Removing and Installing/Replacing Backrest

Note:
Illustration shows removal of left side.

The right side is removed in the same way as the left side.





Note:
Before removing reversing clip, mark position to ensure correct alignment when installing.

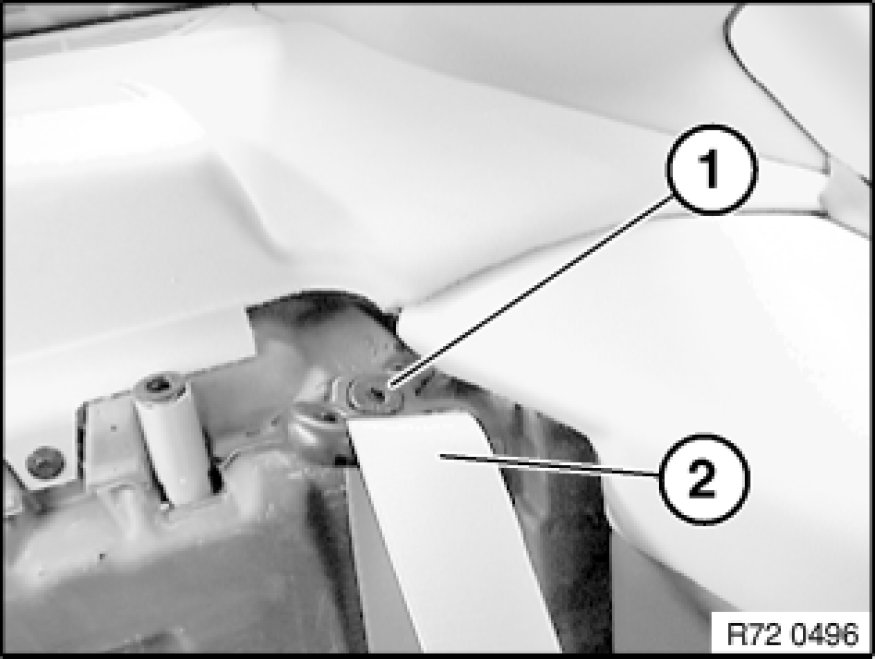

Release screw (1).
Tightening torque 72 11 24AZ [1][2]Seat Belt Systems.

Remove reversing clip (2).

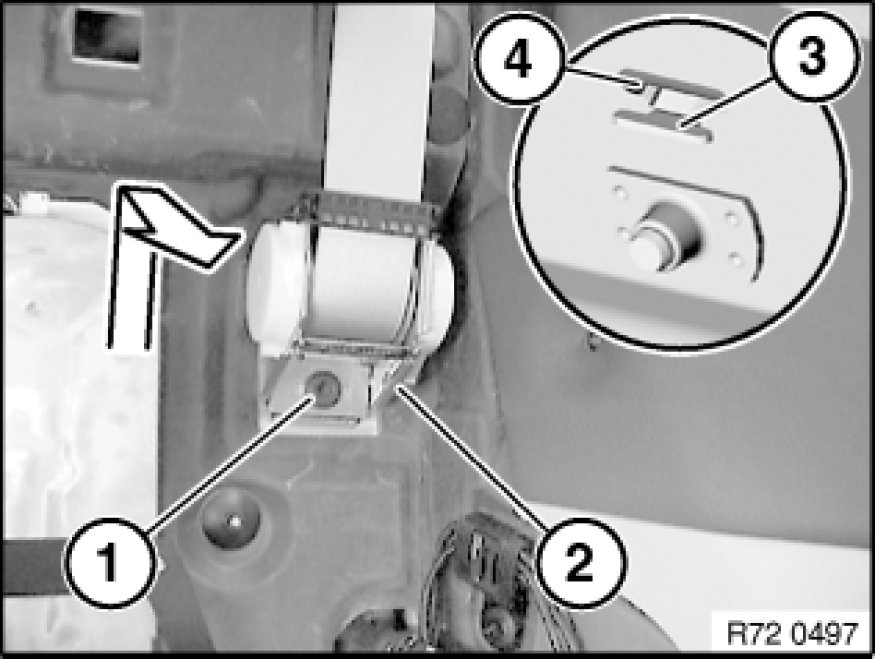

Release screw (1) on automatic reel (2).

Tightening torque 72 11 20AZ [1][2]Seat Belt Systems.

Remove automatic reel (2) in direction of arrow.

Installation:
Coding (3) of automatic reel must be seated in opening (4) of body.

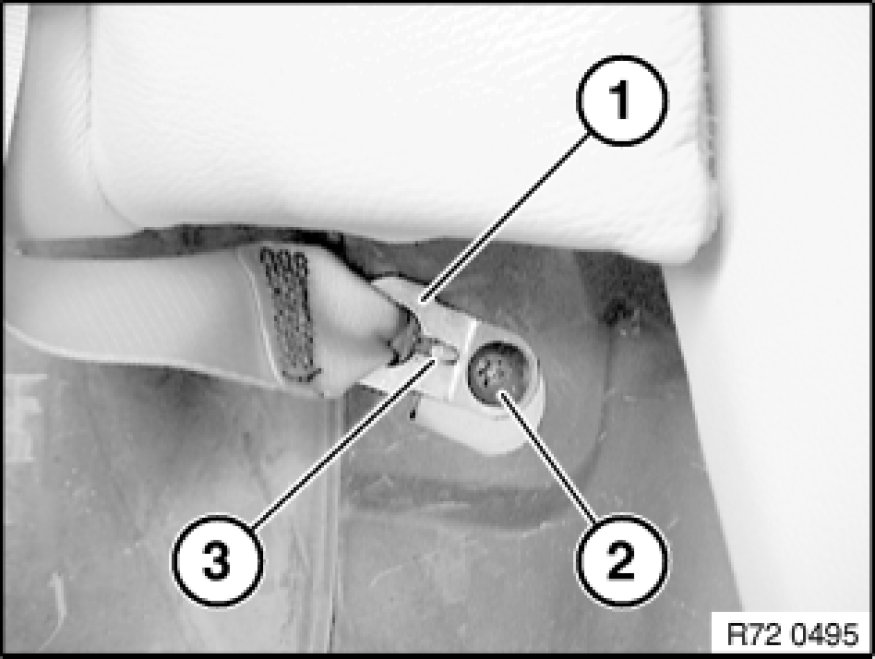

Release screw (2).

Tightening torque 72 11 22AZ [1][2]Seat Belt Systems.

Remove seat belt (1).

Installation:
Secure fitting of seat belt (1) by means of stop (3) in guide.
