Removing and Installing/Replacing Rear Left or Right Seat Belt (Complete)

72 11 100 - Removing and installing/replacing rear left or right seat belt (complete)





Necessary preliminary tasks:
- Remove backrest for rear seat Removing and Installing/Replacing Backrest

Note:
Illustration shows removal of left side.

The right side is removed in the same way as the left side.





Note:
Before removing reversing clip, mark position to ensure correct alignment when installing.

Release screw (1).
Tightening torque 72 11 24AZ [1][2]Seat Belt Systems.

Remove reversing clip (2).





Release screw (1) on automatic reel (2).

Tightening torque 72 11 20AZ [1][2]Seat Belt Systems.

Remove automatic reel (2) in direction of arrow.

Installation:
Coding (3) of automatic reel must be seated in opening (4) of body.





Release screw (2).

Tightening torque 72 11 22AZ [1][2]Seat Belt Systems.

Remove seat belt (1).

Installation:
Secure fitting of seat belt (1) by means of stop (3) in guide.

Note:
The work step for "Removing and installing/replacing left or right seat belt" ends here.





Removing and installing/replacing rear left or right lower strap (belt buckle).

Necessary preliminary tasks:
- Remove rear seat Rear Seat - Normal





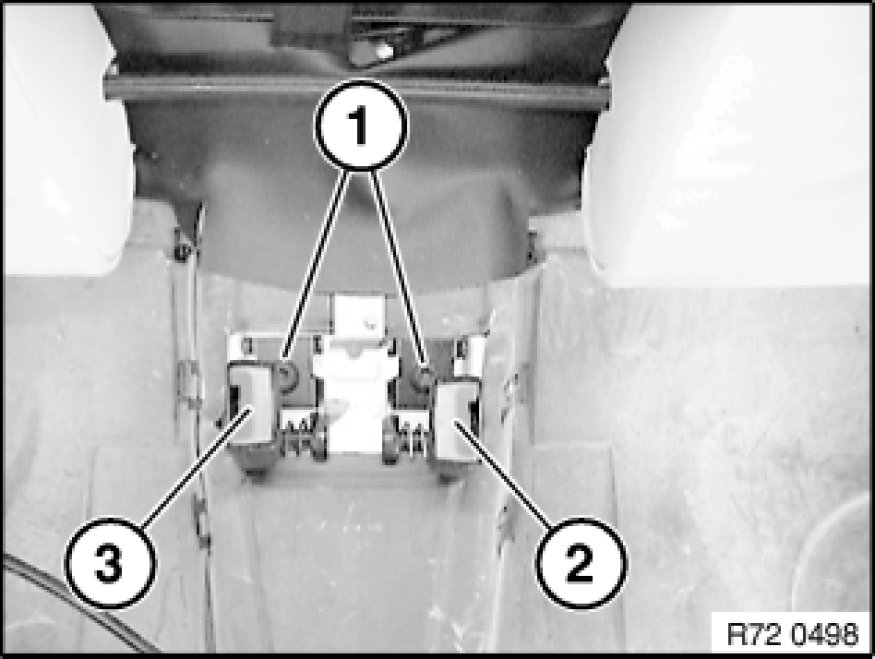

(2) - Seat belt buckle, left
(3) - Seat belt buckle, right
Release screw (1) on left and right.

Tightening torque 72 11 23AZ [1][2]Seat Belt Systems.

Remove relevant seat belt buckle.
