Leak Detector: Service and Repair

16 13 015 - Removing and installing/replacing tank leak diagnosis module





Necessary preliminary tasks:
- Remove carbon canister 16 12 010 Removing and Installing/Replacing Carbon Canister (DMTL) with tank leak diagnosis module

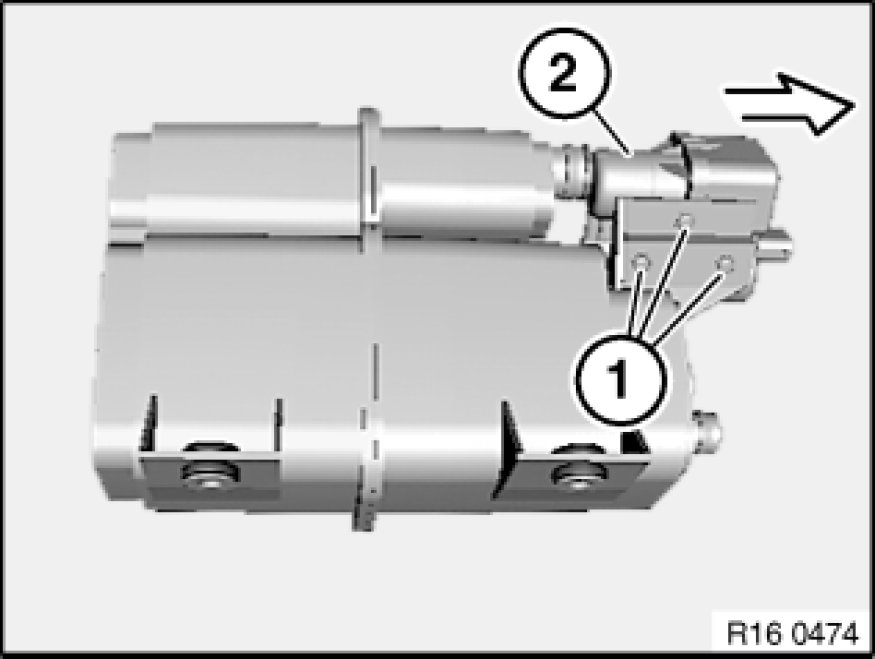

Release screws (1).
Tightening torque 16 13 3AZ 16 13 Tank Ventilation.
Disconnect tank leak diagnosis module (2) from carbon canister in direction of arrow.

Installation:
Replace sealing ring.
