16 12 010 Removing and Installing/Replacing Carbon Canister (DMTL)

16 12 010 - Removing and installing/replacing carbon canister with DM-TL





Note:
DM-TL = tank leak diagnosis module





Release screws and remove heat shield (1).

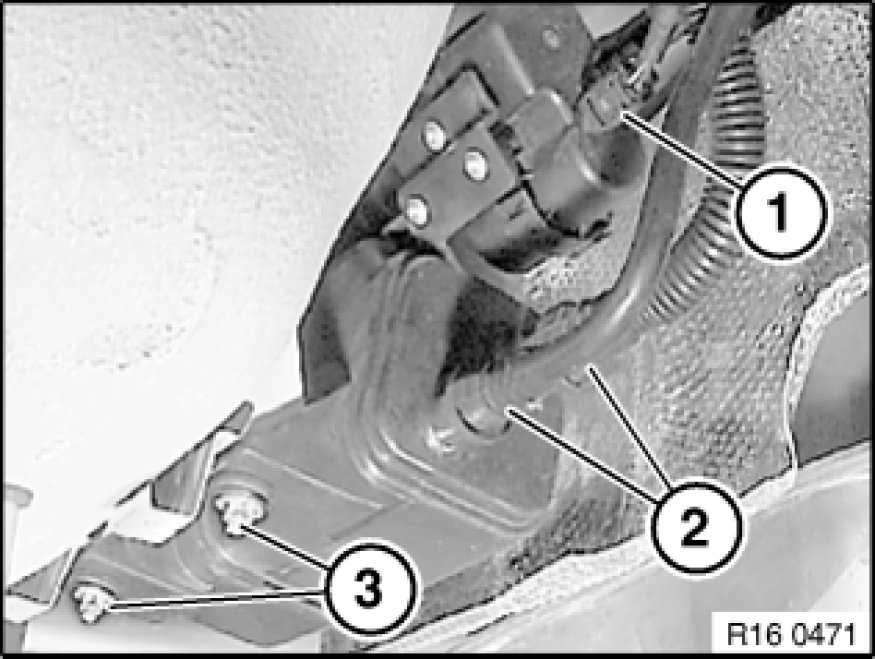

Disconnect plug (1) and lines (2) from carbon canister.
Release screws (3).
Tightening torque, 16 13 2AZ 16 13 Tank Ventilation.

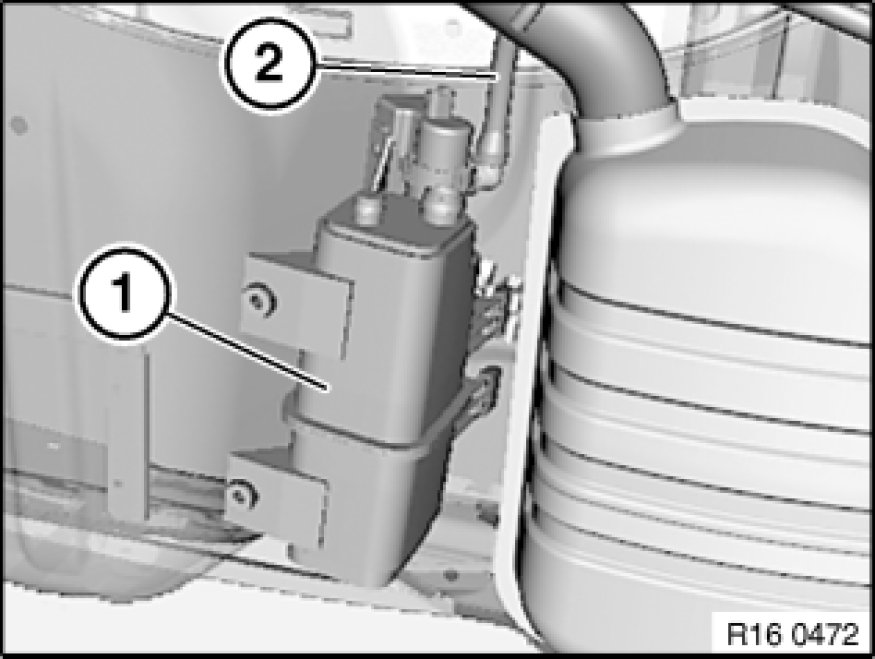

Carefully lower carbon canister (1), disconnect line (2) from tank leak diagnosis module and remove carbon canister.
