16 12 010 Removing and Installing or Replacing Carbon Canister

16 12 010 - Removing and installing/replacing carbon canister

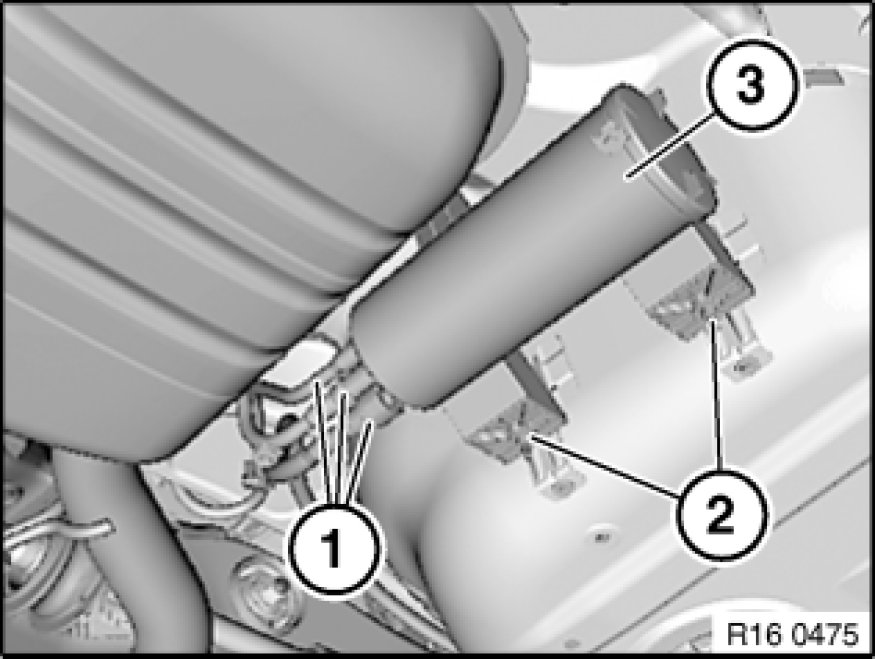

Release screws and remove heat shield (1).





Disconnect lines (1) from carbon canister (3).
Unfasten screws (2).
Tightening torque, 16 13 2AZ 16 13 Tank Ventilation.
Remove carbon canister (3).
