13 62 605 Replacing Pulse Generator on Right Exhaust Camshaft

13 62 605 - Replacing pulse generator on right exhaust camshaft (S85)

(cylinder bank 1 to 6)





Necessary preliminary tasks:
- Read out fault memory of DME control unit; if necessary, work through test schedules
- Switch off ignition
- Remove right intake filter housing Removing and Installing Right Intake Filter Housing (S85)
- Remove right ignition coil cover

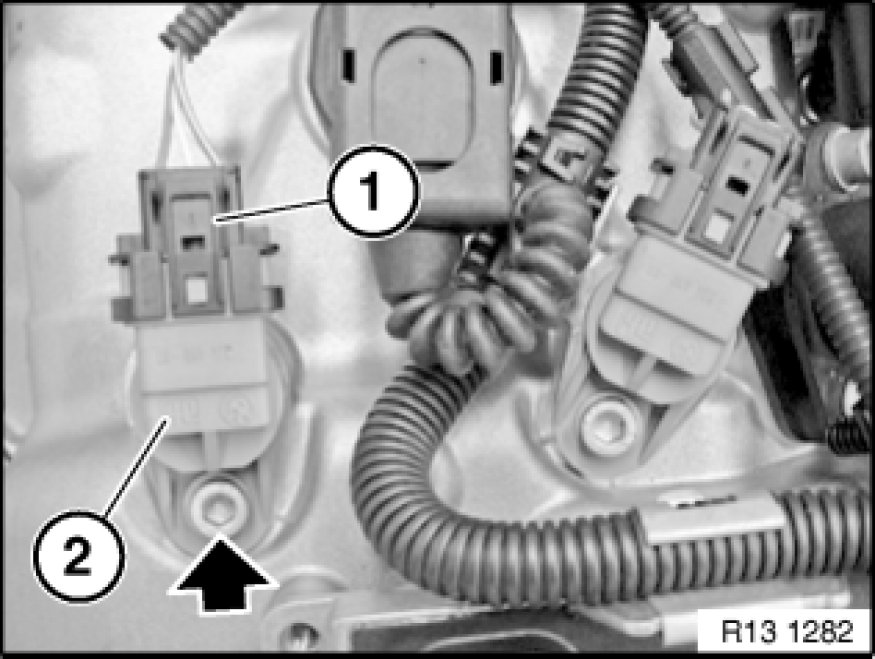

Release plug connector (1) and pull off.
Release screw.
Remove pulse generator (2).

Installation Note:
Replace sealing ring and coat with antiseize agent.





Note:
Now clear the fault memory.
