Removing and Installing/Replacing Body Gateway Module

61 35 127 - Removing and installing/replacing body gateway module





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Read out programming/coding Programming and Relearning.
- Print out and make a note of settings for car and key memory in CKM menu





Necessary preliminary tasks:
- Disconnect negative battery cable Instructions for Disconnecting and Connecting Battery
- Remove trim for instrument panel, bottom left 51 45 181 Removing and Installing/Replacing Bottom Right Trim For Instrument Panel





Note:
Open glovebox.

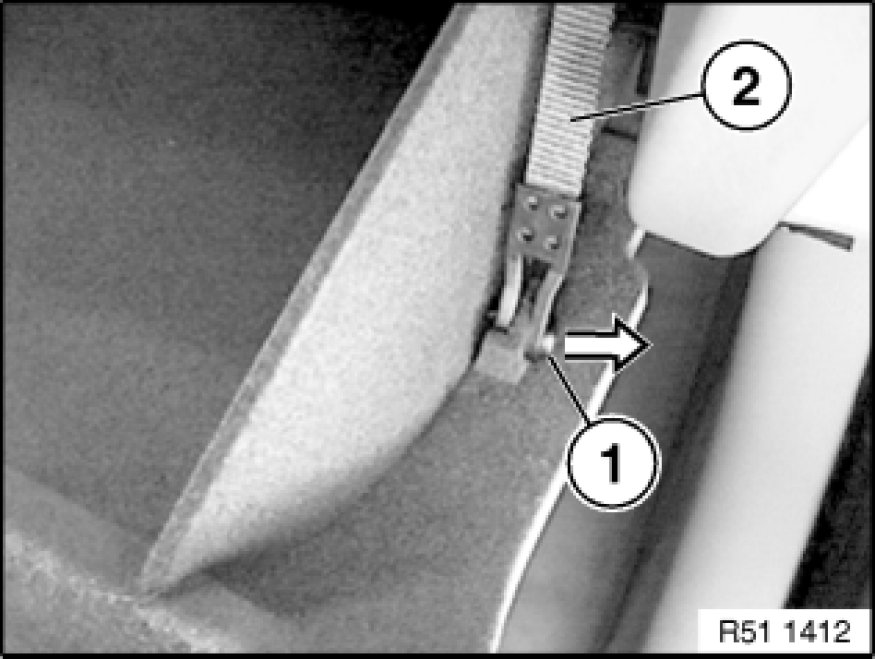

Unclip pin (1) from retaining strap (2).

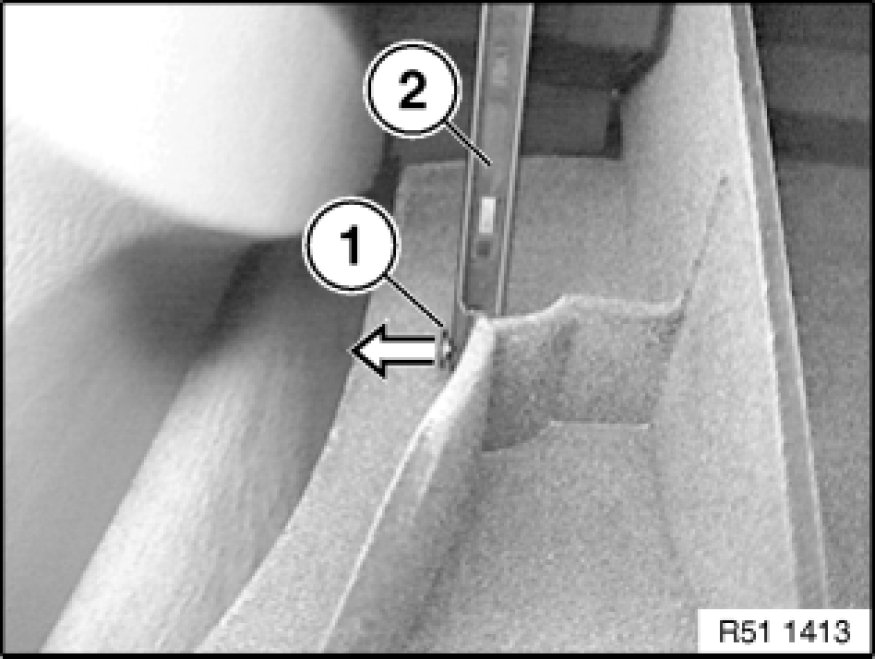

Unclip pin (1) from shock absorber (2).

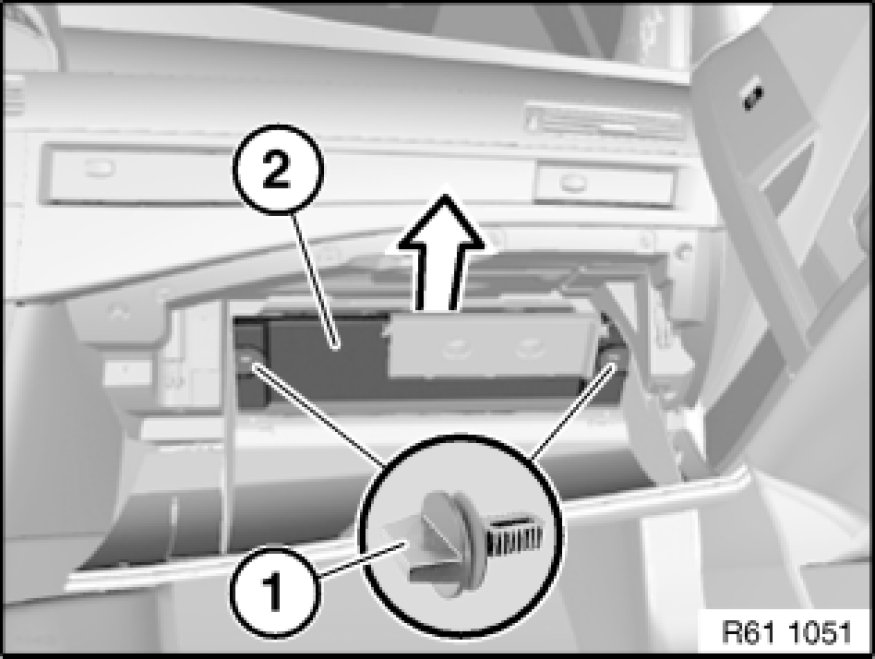

Open rotary clips (1) and remove cover (2) in direction of arrow.

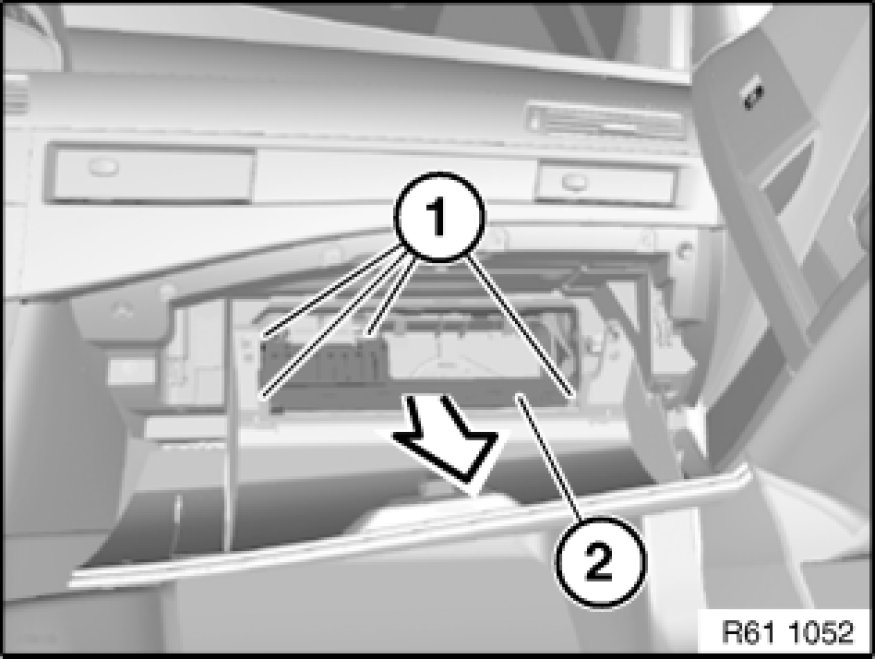

Release screws (1).
Pull fuse holder (2) back slightly.





Detach airbag control unit with gateway module Removing and Installing (Replacing) Airbag Control Unit With Gateway Module.

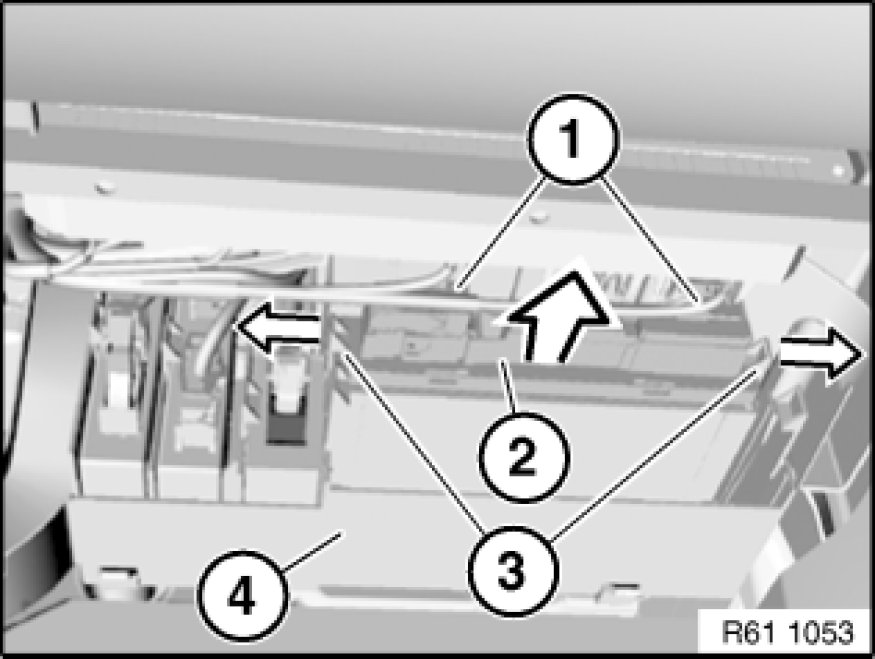

Unlock plug connections (1) and disconnect.
Unlock catches (3) in direction of arrow and remove body module (2) from equipment carrier (4).





Replacement:
Carry out programming/coding Programming and Relearning.
- Check printed-out or noted-down settings for car and key memory in CKM menu and reset if necessary
