Voltage Supply

Regular Sleeping (As of 03/06)

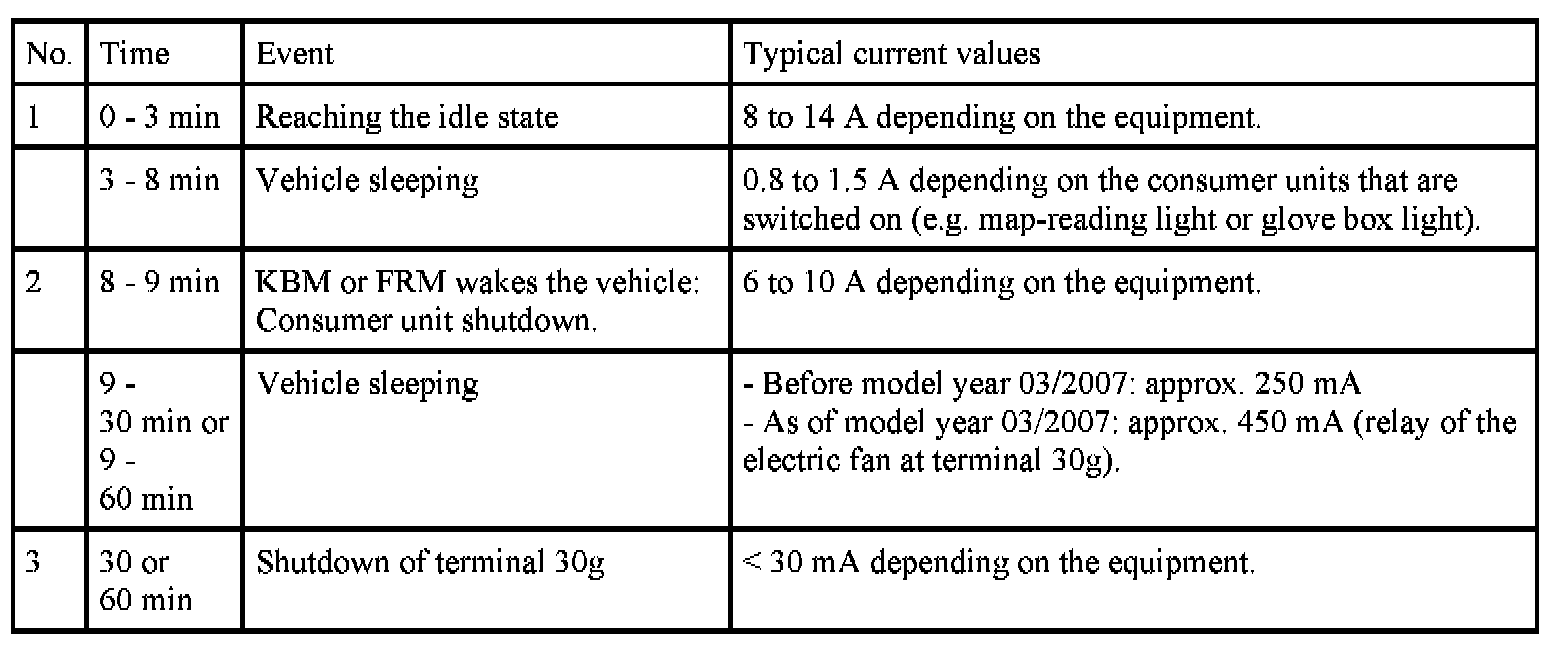

This document provides an overview of the typical current values that are measured in an external closed-circuit current measurement with a current measuring clip during regular sleeping.

For the procedure of an external closed-circuit current measurement with measurement system, see document "Observing sleeping by means of external closed-circuit current measurement". Initial Inspection and Diagnostic Overview

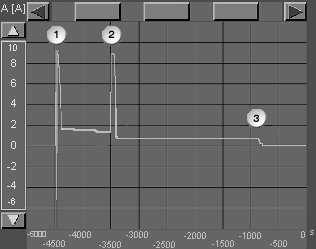

Regular sleeping without additional wakings to check the coolant temperature:

As Of 03/06:
