Replacing Sealing Frame for Left or Right Rear Light (on Side Panel)

63 21 101 - Replacing sealing frame for left or right rear light (on side panel)





Necessary preliminary tasks:
- Remove rear light Removing and Installing/Replacing Left or Right Rear Light (In Side Panel)

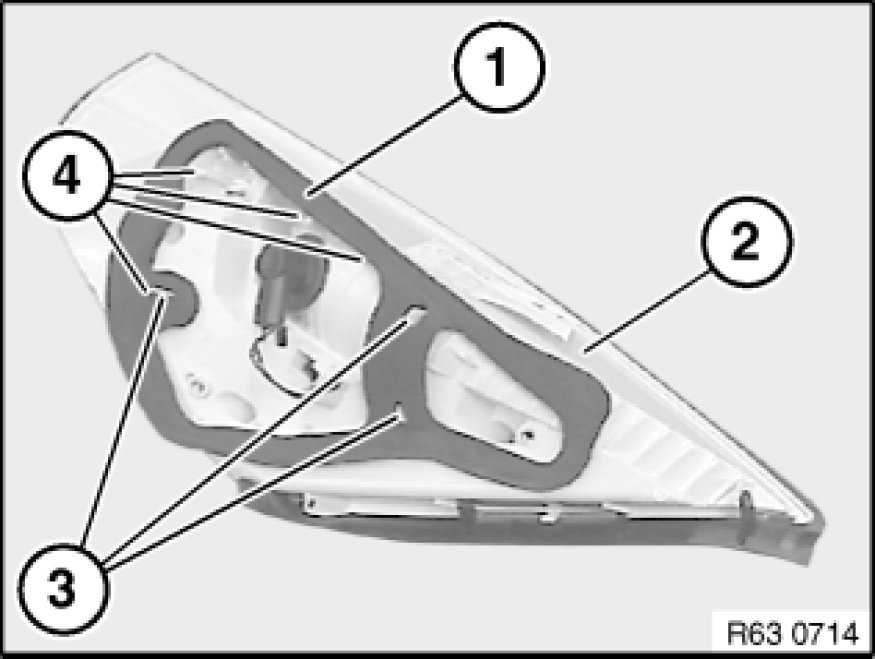

Detach sealing frame for rear light (1) from rear light (2).
Clean bonding surface and allow to dry.

Installation:
Make sure sealing frame for rear light (1) is correctly bonded all round on rear light (2).
Make sure sealing frame for rear light (1) is correctly seated on rear light (2)
Build date up to 09/07:
Sealing frame for rear light (1) is centered via guides (3).
Build date after 09/07:
Sealing frame for rear light (1) is centered via guides (4).
