Removing and Installing/Replacing Left or Right Rear Light (on Bumper Trim)

63 21 183 - Removing and installing/replacing left or right rear light (on bumper trim)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove bumper trim





Build date up to 09/07:

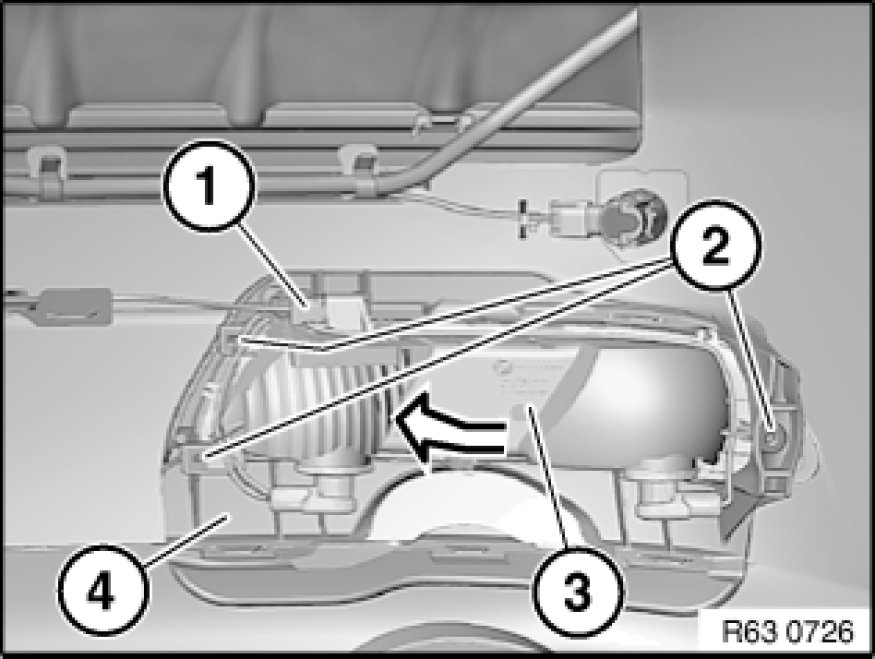

Disconnect plug connection (1).
Release screws (2). Tightening torque 63 21 2AZ [1][2]Mechanical Specifications.
Feed rear light (3) in direction of arrow out of bumper trim (4) and remove.





Installation Note:

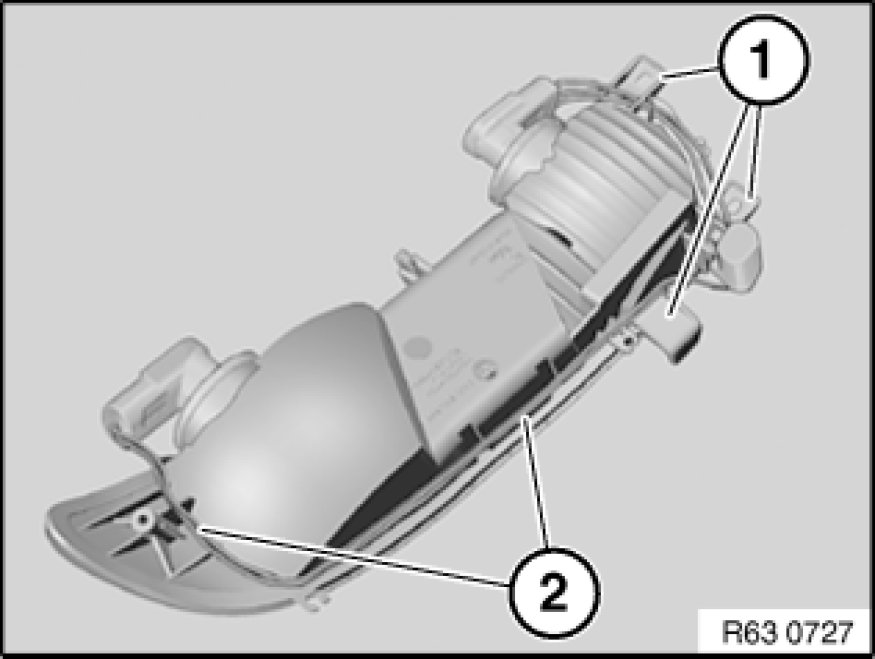

Plastic lugs (1) must not be damaged.
Make sure wiring harness (2) is laid correctly.





Build date after 09/07:

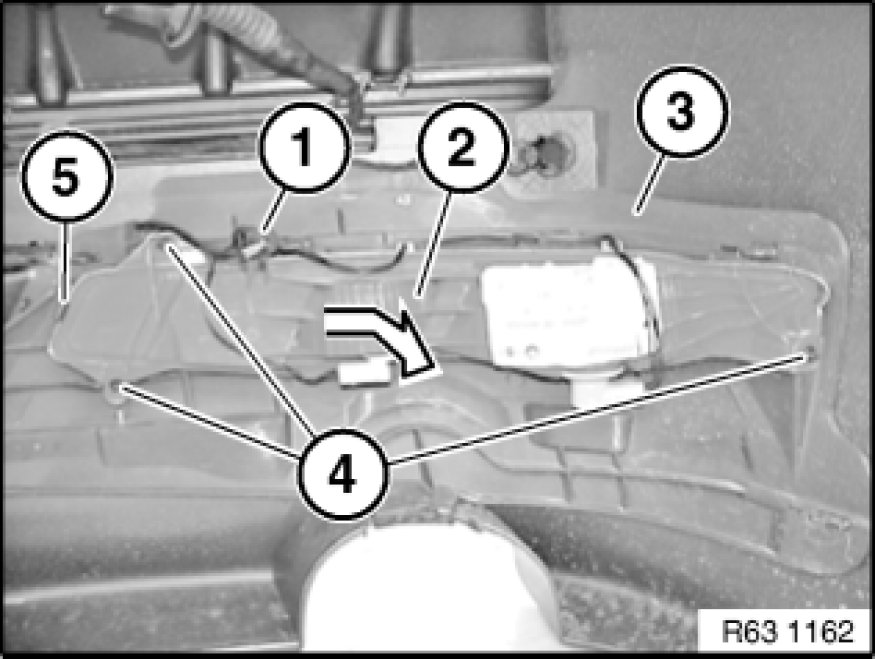

Disconnect plug connection (1).
Release screws (4). Tightening torque 63 21 2AZ [1][2]Mechanical Specifications.
Unlock retaining lug (5) and rear light (2) in direction of arrow from bumper trim (3).

Installation Note:
Retaining lug (5) must not be damaged or missing.
Make sure wiring harness is correctly laid.
