Removing and Installing/Replacing Left or Right Rear Light (In Side Panel)

63 21 180 - Removing and installing/replacing left or right rear light (in side panel)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Partially remove luggage compartment wheel arch trim

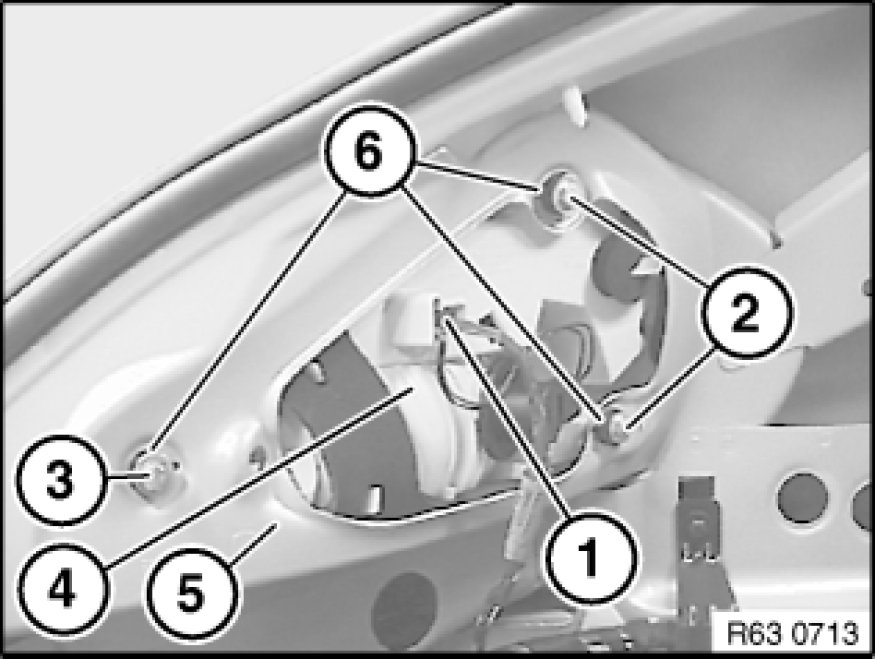

Disconnect plug connection (1).

Note:
When releasing nuts (2) and screw (3), grip associated adjusting element (6) with a suitable tool.

Unscrew nuts (2). Tightening torque 63 21 1AZ [1][2]Mechanical Specifications.
Release screw (3). Tightening torque 63 21 2AZ [1][2]Mechanical Specifications.
Remove rear light (4) in outwards direction from side panel (5).

Installation Note:
Observe gap dimensions.
If necessary, adjust rear light (4) to fit by way of adjusting elements (6).
Replace sealing frame for rear light Replacing Sealing Frame for Left or Right Rear Light (on Side Panel).
