Exterior Lighting Module: Service and Repair

61 35 285 - Removing and installing (replacing) light module





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.

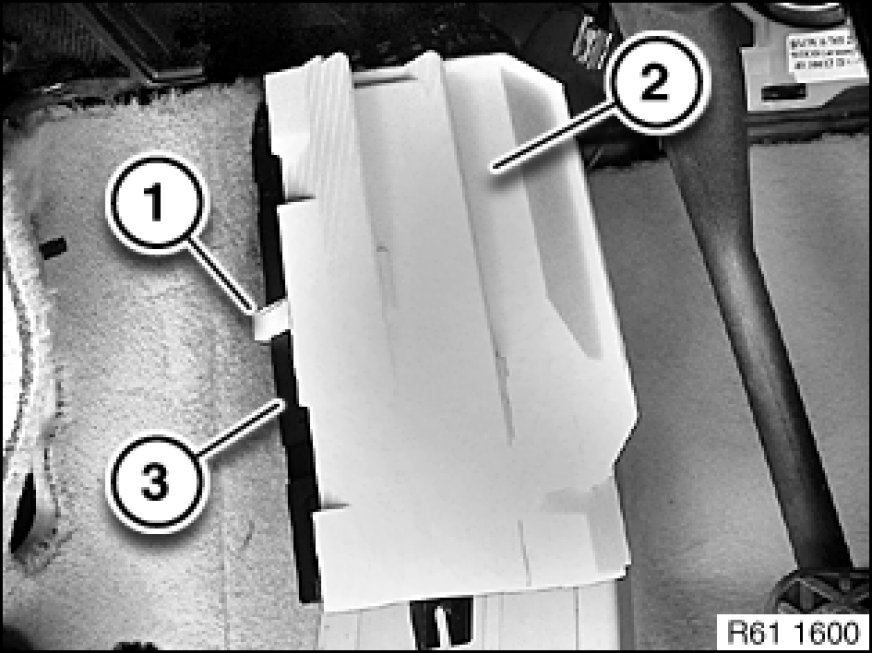

Unlock catch (1) and feed out/remove light module (2) in direction of arrow.

Installation Note:
Make sure light module (2) is correctly seated in mounting (3) and catch (1).

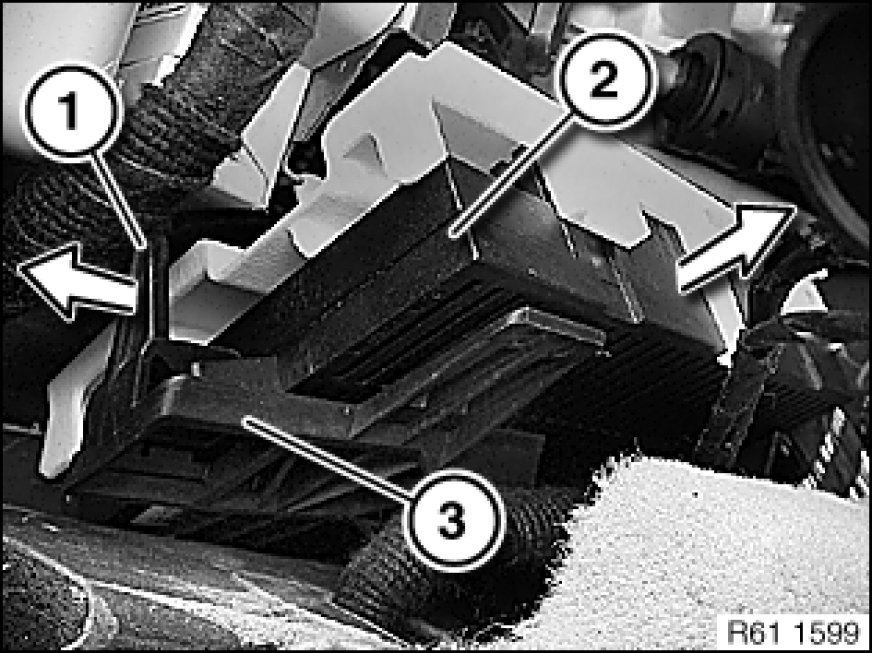

If necessary, unlock catch (1) and remove cover (2) from light module (3).

Installation Note:
Make sure cover (2) is correctly seated on light module (3).

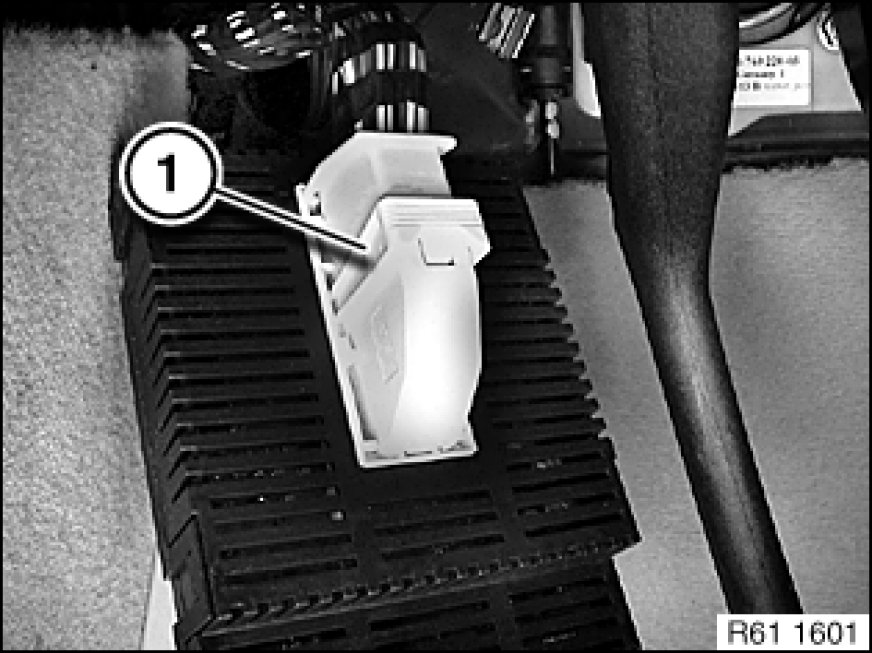

Disconnect plug connection (1).





Replacement:
Carry out programming/coding Programming and Relearning.
