Replacing LED for Front Inside Door Opener

63 31 182 - Replacing LED for front inside door opener





Necessary preliminary tasks:
- Remove door trim panel Removing and Installing Left or Right Front Door Trim Panel

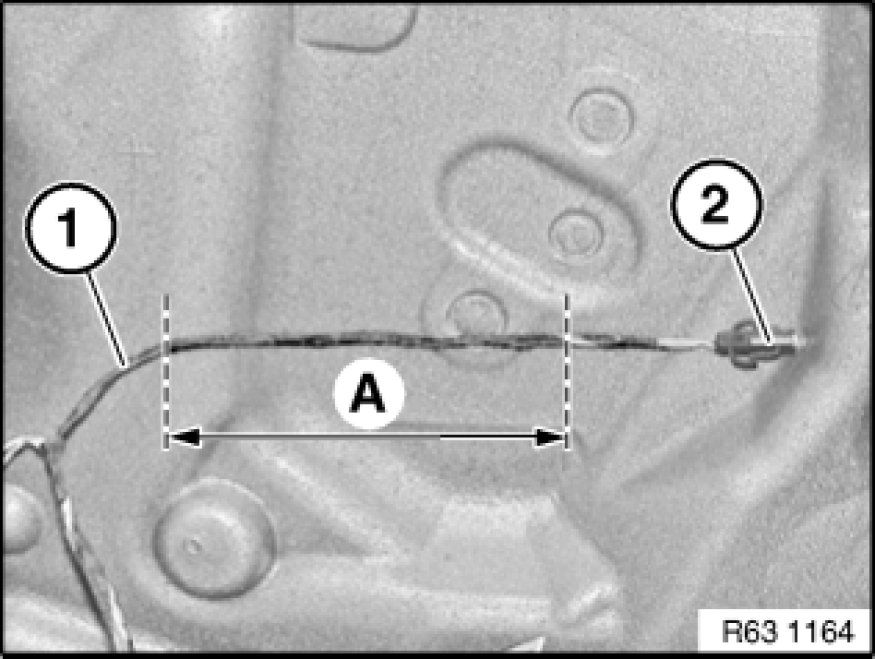

Remove sheathing of wiring harness (1) in area (A).
Cut through wiring harness (1) in area (A) and remove LED for door opener (2).

Installation:
Adapt length of wiring harness of new LED for door opener.
Connect wiring harness of new LED for door opener using butt connectors 61 13 ... Butt Connector For Repairing A Plug Connection to wiring harness (1).

Wrap wiring harness (1) in insulating tape.
